Rapporter

Reports in Koha are a way to gather data. Reports are used to generate statistics, member lists, shelving lists, or any list of data in your database.

  • Get there: More > Reports

Custom reports

Koha’s data is stored in a MySQL database which means that librarians can generate nearly any report they would like by either using the guided reports wizard or writing their own SQL query.

Add custom report

Observera

Only staff with the create_reports permission (or the superlibrarian permission) will be able to create custom reports, either with the guided report wizard or directly with SQL.

Rapportguide

Rapportguiden leder dig genom en process i sex steg för att generera en rapport.

Step 1: Choose the module you want to report on. This will determine what tables and fields are available for you to query.

’Report is public’ should be left to the default of ’No’ in most cases especially if the report contains patron or other sensitive information. A public report can be accessed using the JSON reports services by anyone and without authentication.

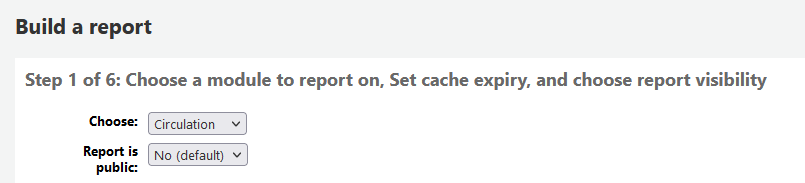

First step of creating a guided report - choosing which module to work on and whether report is public or not

Obs

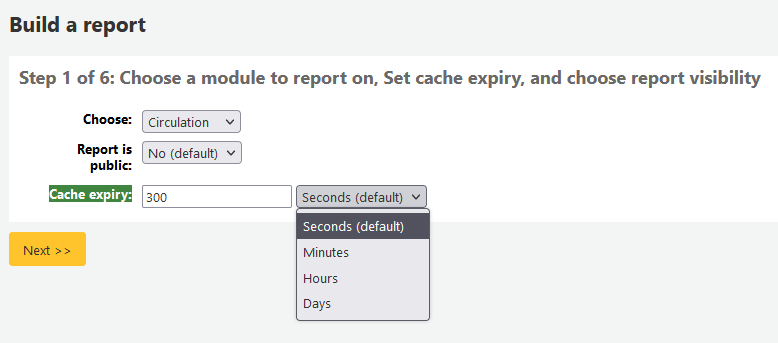

If your system administrator has set up memcache on your server you might see one more option for the Cache expiry. This is related to your public reports. If you make the report public then it’s constantly running and will cause a large load on your system. Setting this value prevents that.

Creating a guided report - define the cache expiry time

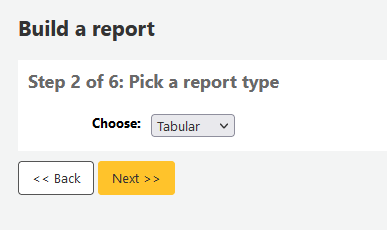

Step 2: Choose a report type. For now, Tabular is the only option available.

Second step of creating a guided report - choosing type

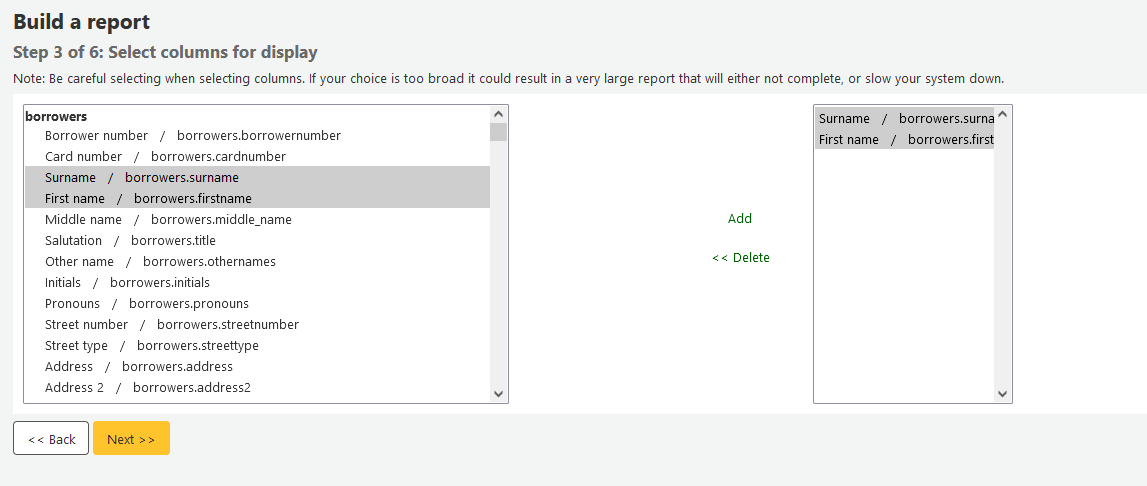

Step 3: Choose the fields you want in your report. You can select multiple fields and add them all at once by using CTRL+click on each item you want to add before clicking the Add button.

Third step of creating a guided report - select columns for display

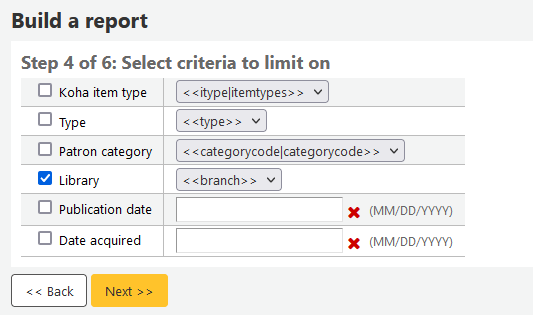

Step 4: Choose any limits you might want to apply to your report (such as item types or branches). If you don’t want to apply any limits, simply click ’Next’ instead of choosing an option.

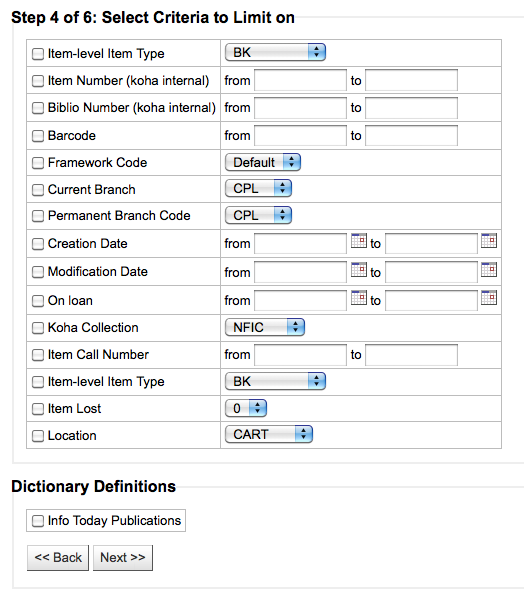

Fourth step of creating a guided report - select criteria to limit on

Step 5: Perform math functions. If you don’t want to do any calculations, simply click ’Next’ instead of choosing an option.

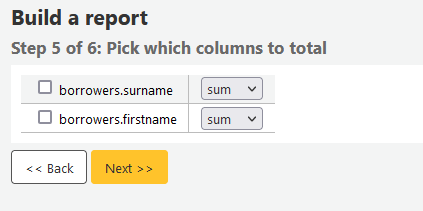

Fifth step of creating a guided report - pick column to total

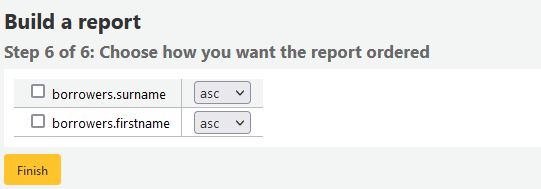

Step 6: Choose data order. If you want the data to print out in the order it’s found in the database, simply click ’Finish’.

Sixth step of creating a guided report - Choose how you want the report ordered

When you are finished you will be presented with the SQL generated by the report wizard. From here you can choose to save the report by clicking ’Finish’ or copy the SQL and make edits to it by hand.

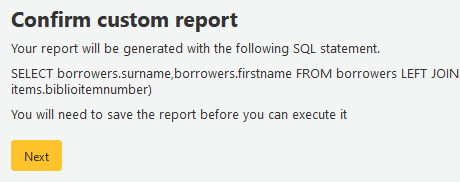

Confirm custom report

Om du väljer att spara rapporten ombeds du att ge den ett namn, lägga in den i grupper och undergrupper samt skriva in eventuella kommentarer om rapporten.

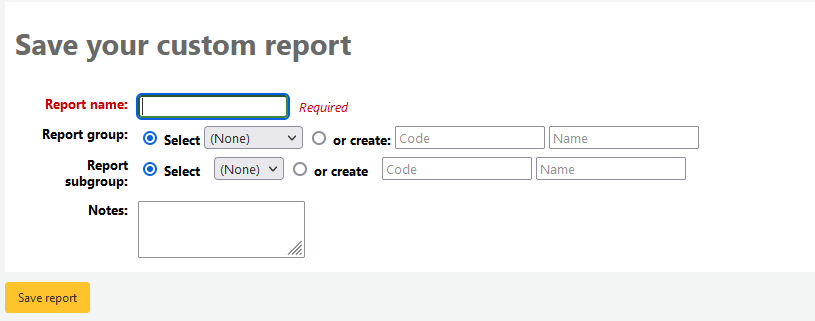

Save custom report

Once your report is saved it will appear on the ’Use saved’ page with all other saved reports.

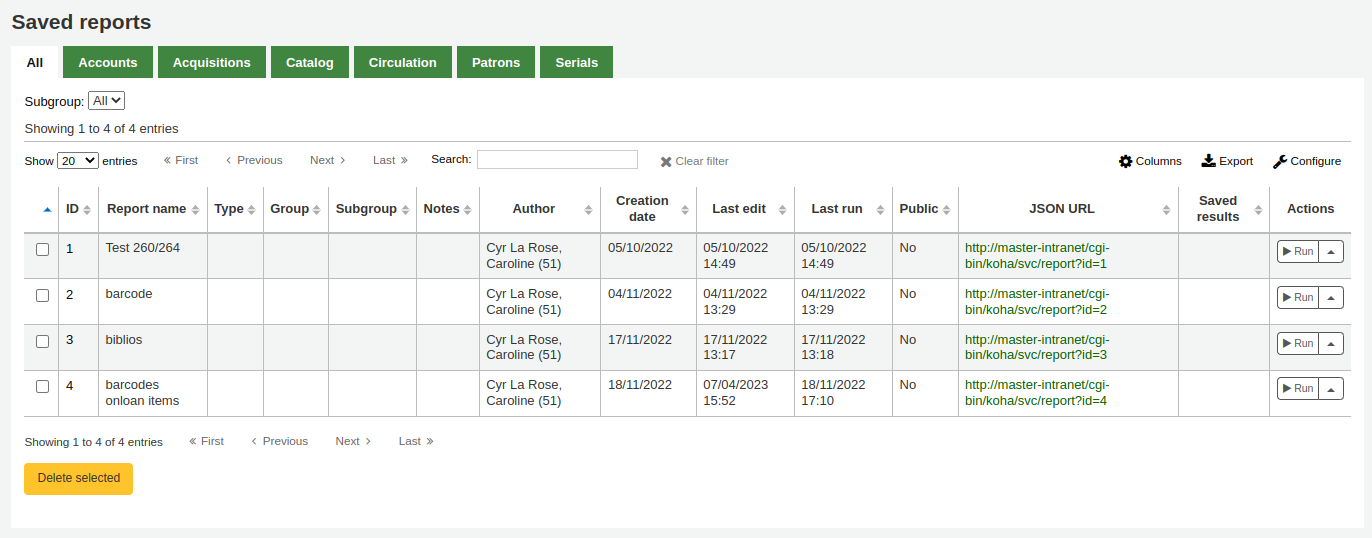

List of saved reports, "All" tab is selected

Obs

  • You can customize the columns of this table in the ’Table settings’ section of the Administration module (table id: table_reports).

Härifrån kan du redigera, köra rapporten eller schemalägga en tid då rapporten ska köras. För att hitta den rapport du skapade kan du sortera efter alla kolumner genom att klicka på kolumnrubriken (datumkolumnen skapad är det enklaste sättet att hitta rapporten du just la till). Du kan också filtrera dina resultat med filtermenyn på vänster sida eller använda flikarna för att hitta rapporter baserat på dina anpassade grupper.

Rapport från SQL

In addition to the report wizard, you have the option to write your own queries using SQL. To find reports written by other Koha users, visit the Koha wiki: http://wiki.koha-community.org/wiki/SQL_Reports_Library. You can also find your database structure in /installer/data/mysql/kohastructure.sql or online at: http://schema.koha-community.org [http://schema.koha-community.org/].

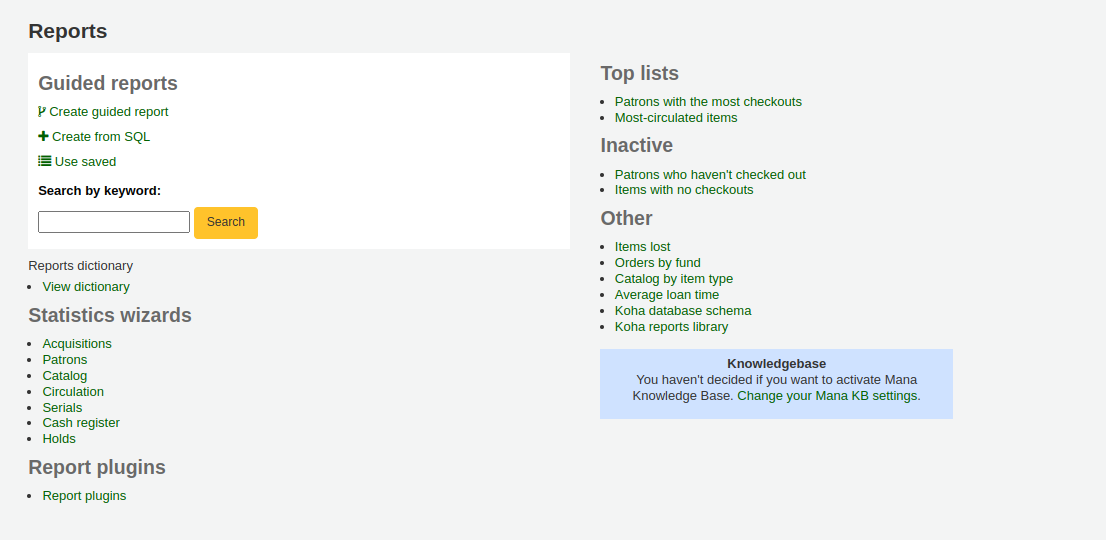

To add your query, click the link to ’Create from SQL’ on the main reports module

Reports main page

or the ’New report’ button at the top of the ’Saved reports’ page.

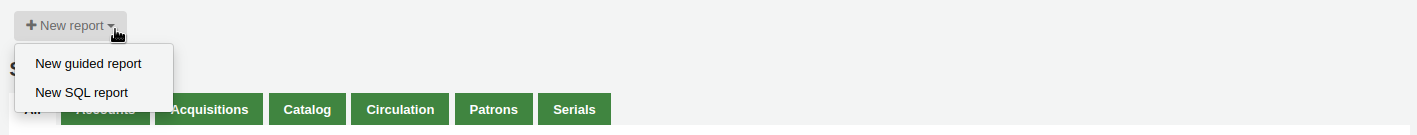

New report button is pressed and the options are New guided report and New SQL report

Fyll i det formulär som visas

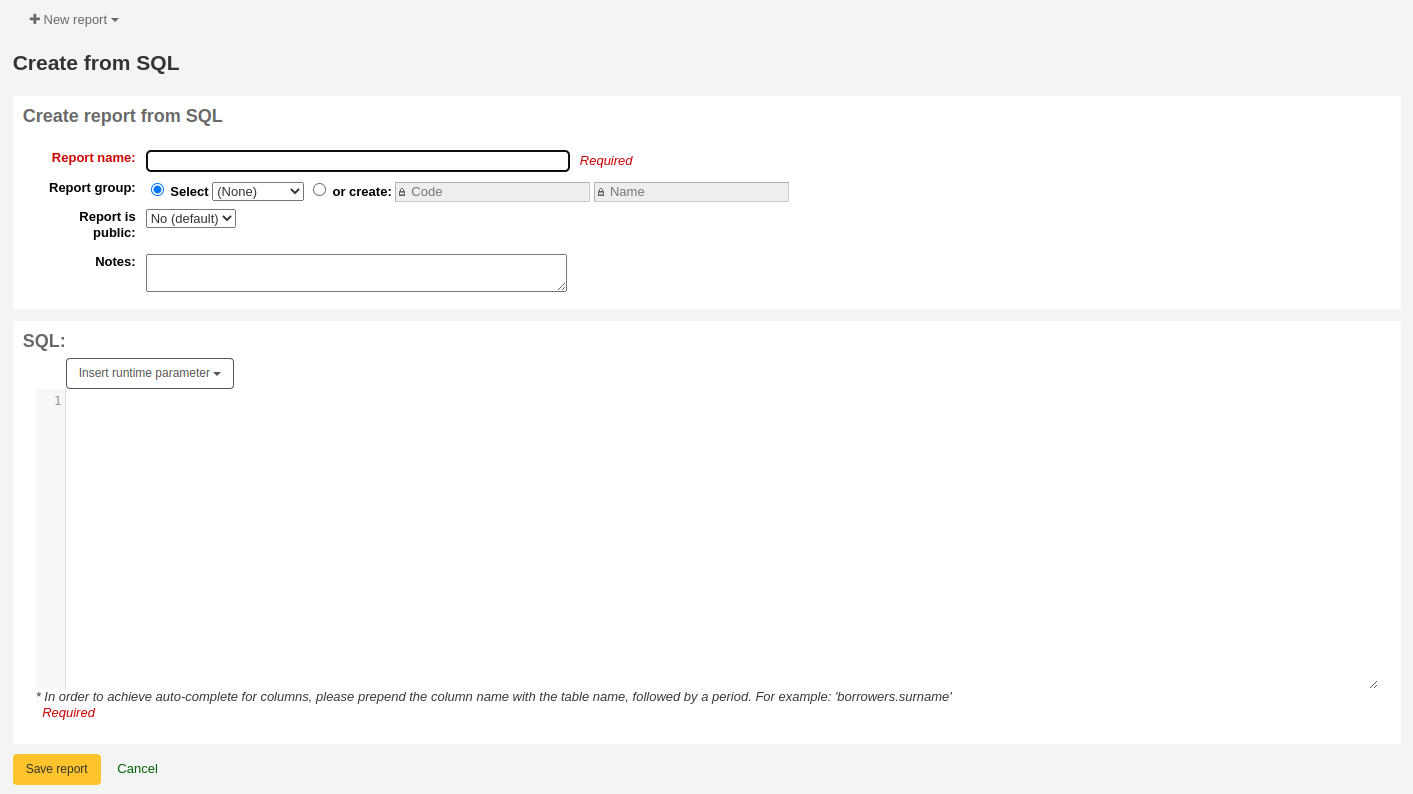

New report from SQL form

  • Report name: the name is what will appear on the ’Saved reports’ page to help you identify the report later. It will also be searchable using the filters found on the left of the ’Saved reports’ page.

  • Report group: you can use the ’Report group’ to organize your reports in tabs on the ’Saved reports’ page. You can choose from the list of existing groups, or create one on the fly by choosing the ’or create’ radio button.

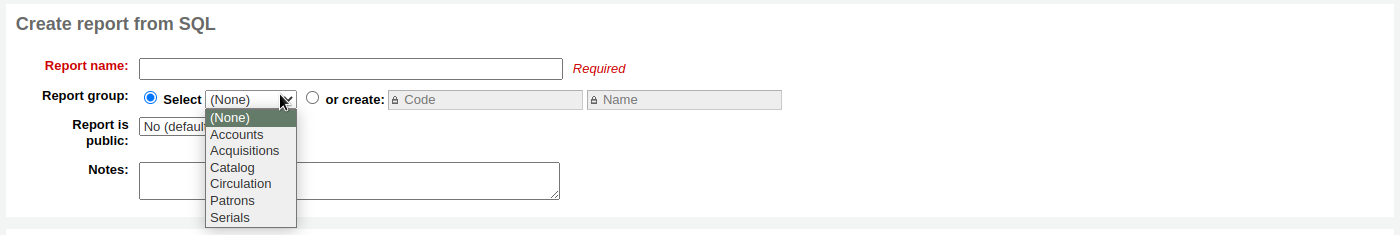

    New report from SQL form, the group drop-down menu is open

    Report groups are set in the REPORT_GROUP authorized value category.

    Varning

    If you’re adding a report group on the fly, the code should not include special characters or spaces.

  • Report subgroup: if you chose a report group, this field will appear to further organize your reports. Choose a subgroup from the list, or create one on the fly by choosing the ’or create’ radio button.

    Report subgroups are set in the REPORT_SUBGROUP authorized value category.

    Observera

    Report subgroups need to have unique values in ’Authorized value’ and ’Description’. The ’Description (OPAC)’ field needs to contain the authorized value for the report group that the subgroup falls under.

    Varning

    If you’re adding a report subgroup on the fly, the code should not include special characters or spaces.

  • Report is public: this should be left to the default of ’No’ in most cases, especially if the report contains patron or other sensitive information. A public report can be accessed using the JSON reports services by anyone and without authentication.

  • Cache expiry: this field will only appear if your system administrator has set up memcache on your server. This is related to public reports. If you make the report public, it’s constantly running and will cause a large load on your system. Setting this value prevents that.

  • Notes: notes will appear on the ’Saved reports’ page, and can be used to provide more details about the report or tips on how to enter values when it runs.

  • SQL: type or paste the SQL for the report (see report writing tips below).

Once everything is entered click the ’Save report’ button and you’ll be presented with options to run it. From here, you can also edit it, duplicate it, or schedule it to be run later.

Once a report is saved, you do not have to recreate it, it will appear on the ’Saved reports’ page with all other saved reports.

List of saved reports, "All" tab is selected

Observera

You can customize the columns of this table in the ’Table settings’ section of the Administration module (table id: table_reports).

From the ’Saved reports’ page, you can make edits, run the report, or schedule a time to run the report later. To find the report you created, you can sort by any of the columns by clicking on the column header (creation date is the best to find the report you just added). You can also filter your results using the filter menu on the left or use the tabs to find reports based on your custom groups.

SQL Report writing tips

Autocomplete

When you start typing in the SQL field, autocomplete options will be displayed.

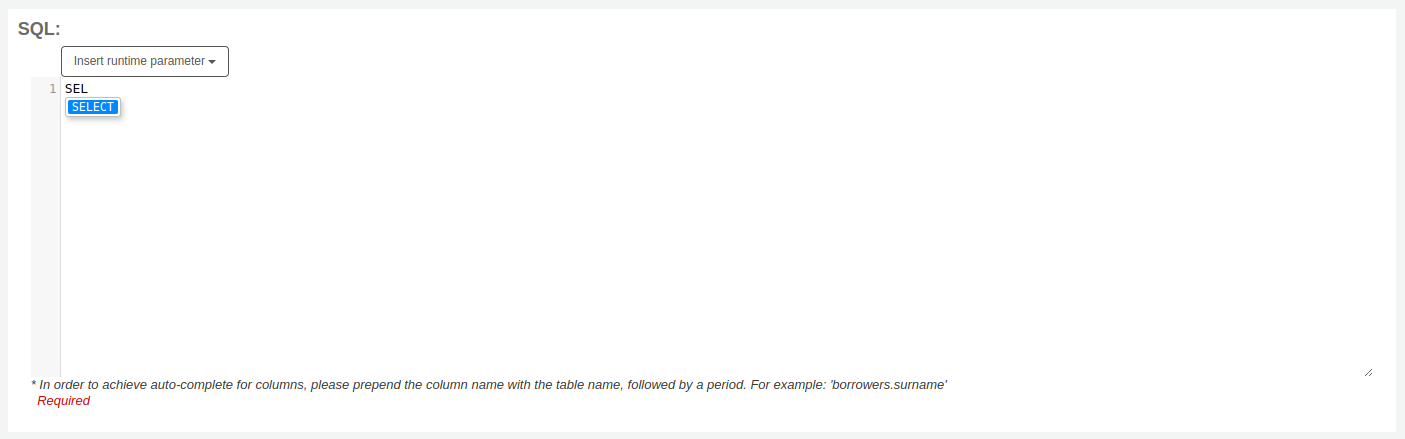

SQL field when creating a report from SQL, in the box, SEL is typed and a suggestion for SELECT is displayed

Use the arrows on your keyboard to choose the correct option and press ’Enter’ or ’Tab’ to insert it into your report, or simply click on the option to insert it.

Autocomplete options include:

  • SQL keywords such as SELECT, FROM, WHERE, etc.

  • table names

  • column names

    Observera

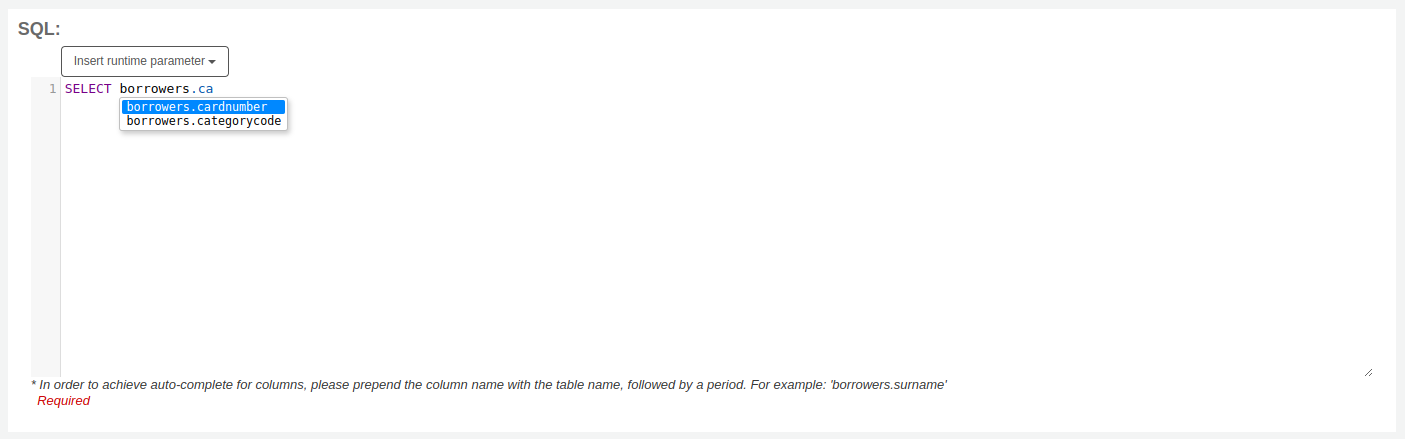

    To have suggestions for column names, you must type the table name first, followed by a period, then start typing the column name.

    For example, to have the suggestion for cardnumber, you must type borrowers.ca.

    SQL field when creating a report from SQL, in the box, SELECT borrowers.ca is typed and suggestions for borrowers.cardnumber and borrowers.categorycode are displayed

Runtime parameters

If you feel that your report might be too resource intensive you might want to consider using runtime parameters to your query. Runtime parameters basically make a filter appear before the report is run to save your system resources.

Click the button ’Insert runtime parameter’ and choose which parameter to add.

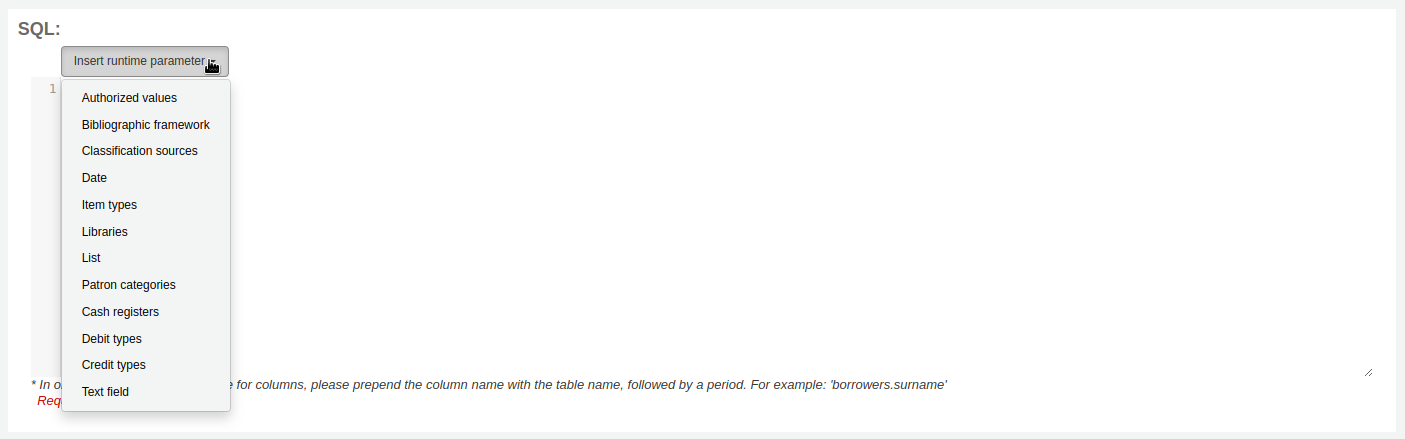

The Insert runtime parameter button is pressed and the different options are shown

  • Authorized value: will display a drop down menu of the value descriptions from the chosen authorized value category. The authorized value code will be inserted in the report when it is run.

  • Bibliographic framework: will display a drop down menu of MARC bibliographic frameworks. The framework code will be inserted in the report when it is run.

  • Classification sources: will display a drop down menu of classification sources. The classification code will be inserted in the report when it is run.

  • Date: will display a calendar to pick a date. The date in YYYY-MM-DD format will be inserted in the report when it is run.

  • Item types: will display a drop down menu of item types. The item type code will be inserted in the report when it is run.

  • Libraries: will display a drop down menu of libraries. The library code (branchcode) will be inserted in the report when it is run.

  • List: will display a large text box in which the user can enter many values, one per line. Those values will be inserted in the report, separated by commas, when it is run.

    Varning

    In the case of the list parameter, users must write one value per line.

  • Patron categories: will display a drop down menu of patron categories. The category code will be inserted in the report when it is run.

  • Cash registers: will display a drop down menu of cash registers. The cash register’s internal id will be inserted in the report when it is run.

  • Debit types: will display a drop down menu of debit types. The debit type code will be inserted in the report when it is run.

  • Credit types: will display a drop down menu of credit types. The credit type code will be inserted in the report when it is run.

  • Text field: will display an empty text field in which the user can enter any text.

    Observera

    You have to put ”%” in a text box to ’leave it blank’. Otherwise, it literally looks for ”” (empty string) as the value for the field.

    For example entering nothing for: ”title=<<Enter title>>” will display results with title=’’ (no title).

    If you want to have to have something not mandatory, use ”title like <<Enter title>>” and enter a % at run time instead of nothing.

After you choose the type of runtime parameter, it will ask you for the parameter label. This is what the user will see as the label for the choice they have to make or text they have to enter.

The syntax inserted into the report is <<Label|authorized_value>>.

  • The << and >> are just delimiters to indicate the start and end of the runtime parameter.

  • The label will be displayed on the left of the choice or value to enter.

  • The authorized_value can be omitted if not applicable. If it is absent, a free text field will be displayed. If it contains an authorized code (see table below), a drop down of the values will be displayed.

Observera

You can write those in manually as well, you don’t have to go through the ’Insert runtime parameter’ button. As long as the syntax is correct, Koha will interpret it as a runtime parameter.

List of parameters that can be used in runtime parameters

Parameter

What the user sees

What gets inserted in query

date

date picker

validly formatted date

branches

drop down of branch names

branch code

itemtypes

drop down of item type names

item type

categorycode

drop down of patron category descriptions

borrower category code

biblio_framework

drop down of MARC bibliographic frameworks

framework code

list

large text box

comma separated values

(auth-value-category)

drop down of auth-value descriptions in category

authorized value

(nothing)

text box

entered text

Observera

You can have more than one runtime parameter in a given SQL query.

Observera

When using runtime parameters that create drop down menus you can optionally specify whether to include an option for ’All’ or to allow multiple selections.

  • To include an option for all the syntax is LIKE <<Label|branches:all>>.

  • To allow multiple selections the syntax is IN <<Label|itemtypes:in>>.

SELECT *
FROM
items i
WHERE
i.homebranch LIKE <<Library|branches:all>>
AND
i.itype IN <<Item type|itemtypes:in>>

Example 1

SELECT surname,
       firstname
FROM borrowers
WHERE branchcode = <<Enter patrons library|branches>>
    AND surname LIKE <<Enter filter for patron surname (% if none)>>

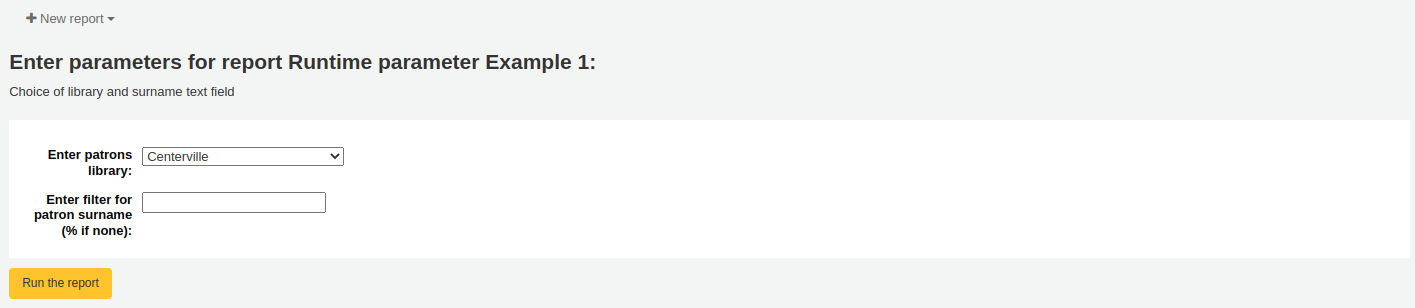

When running the report, the user is asked to choose a library from a drop-down menu and enter a surname in an input text field

Example 2

SELECT *
FROM items
WHERE homebranch = <<Pick your branch|branches>>
    AND barcode LIKE <<Partial barcode value here>>

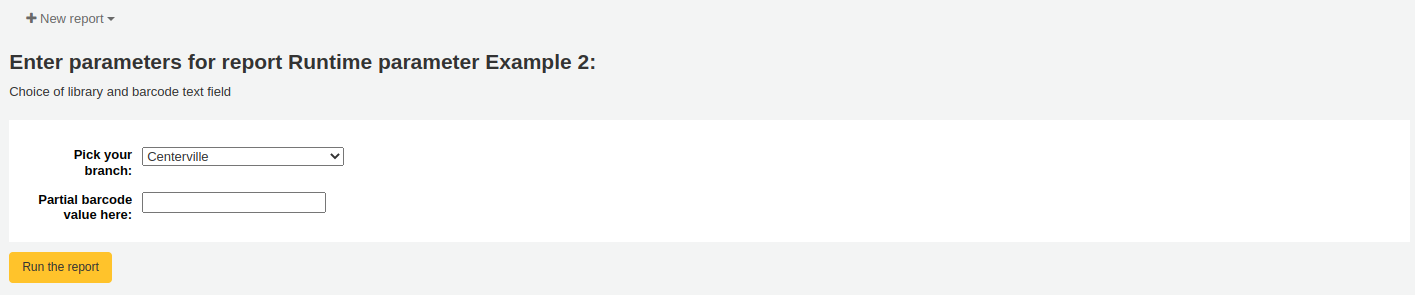

When running the report, the user is asked to choose a library from a drop-down menu and enter a barcode in an input text field

Example 3

SELECT title,
       author
FROM biblio
WHERE frameworkcode = <<Enter the frameworkcode|biblio_framework>>

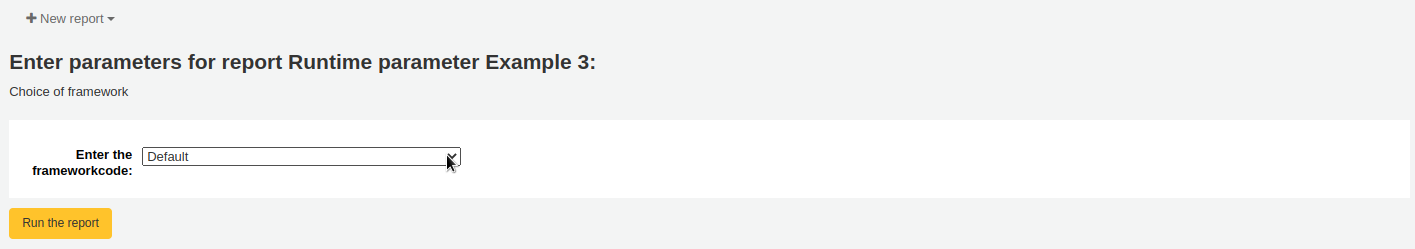

When running the report, the user is asked to choose a bibliographic framework from a drop-down menu

Example 4

SELECT cardnumber,
       surname,
       firstname
FROM borrowers
WHERE dateexpiry <= <<Expiry date|date>>

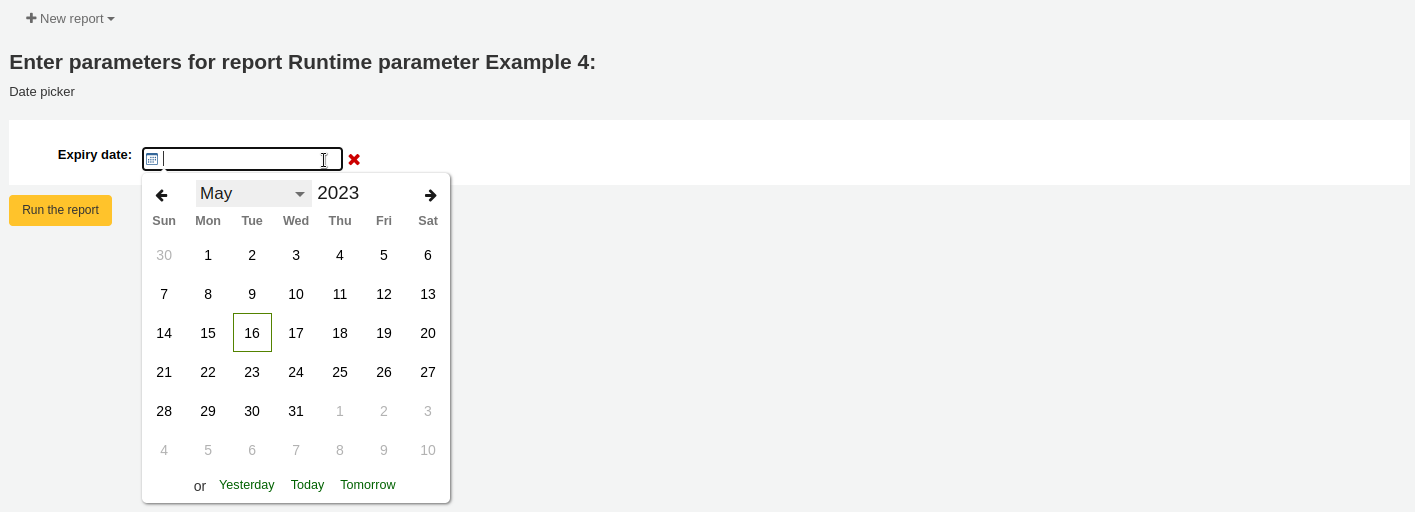

When running the report, the user is asked to pick a date in the calendar (date picker)

Example 5

SELECT *
FROM items
WHERE itemnumber IN <<List of itemnumbers (one per line)|list>>

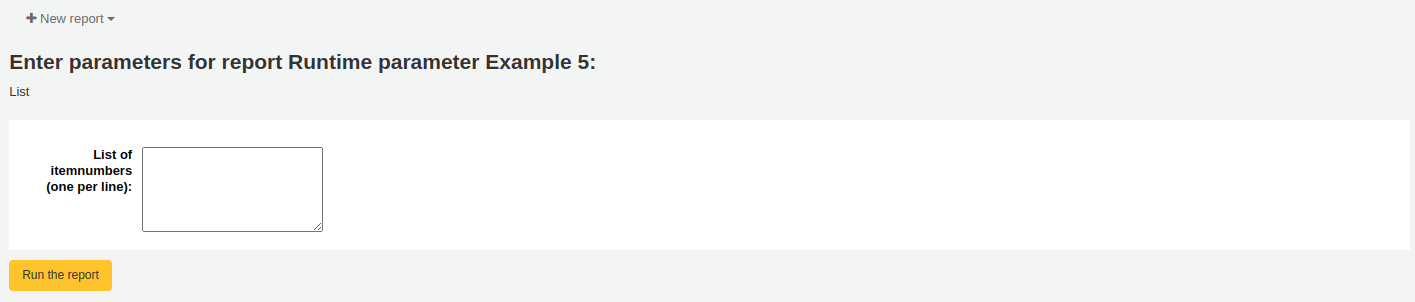

When running the report, the user is asked to enter a list of values

Varning

In the case of the list parameter, users must write one value per line.

Column names

You can use an SQL alias to rename columns.

Example

SELECT surname AS "Last Name"
FROM borrowers

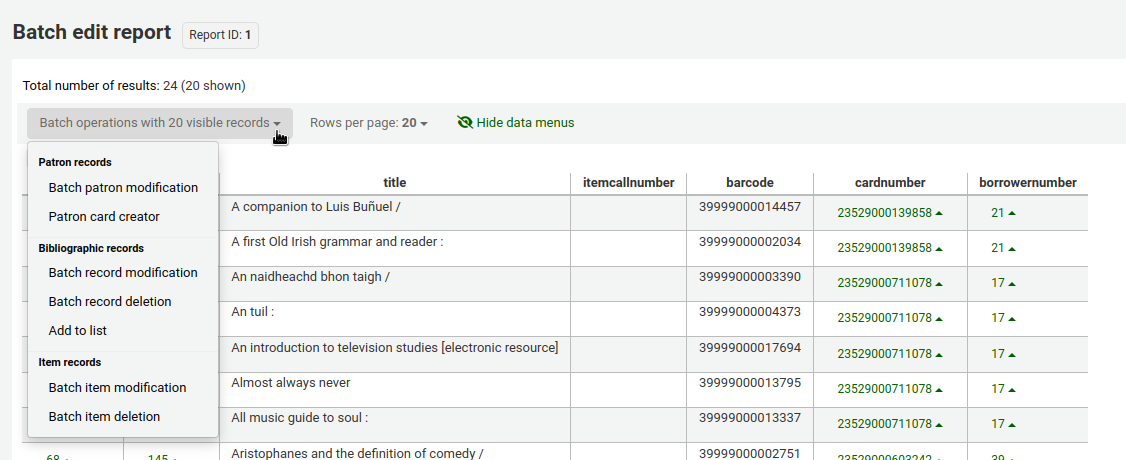

For reports whose results you wish to send to batch modification tools or generate automatic hyperlinks to use [[batch field|Column Name]] to rename the itemnumber, biblionumber or borrowernumber columns. For example, [[itemnumber|Item Number]] will format the itemnumber column as ”Item Number”, while allowing those results to be sent to the batch item modification tool.

Example

SELECT [[borrowernumber|Borrower Number]], firstname AS "First Name", surname AS "Last Name"
FROM borrowers

SQL report from Mana

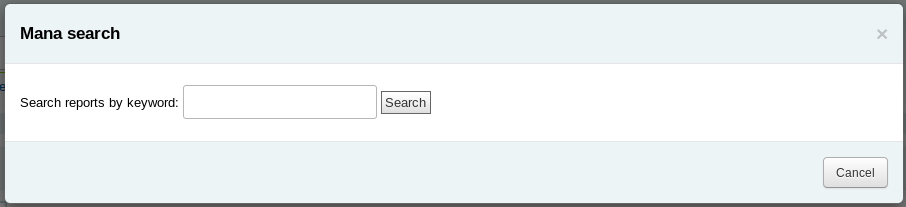

In the ”Create report from SQL”, you can search Mana KB for pre-made reports by clicking on ”New report” and choosing ”New SQL from Mana”.


Obs

This option will only appear if you’ve configured Mana KB in the administration module.

You will be prompted to enter keywords to search the knowledge base.

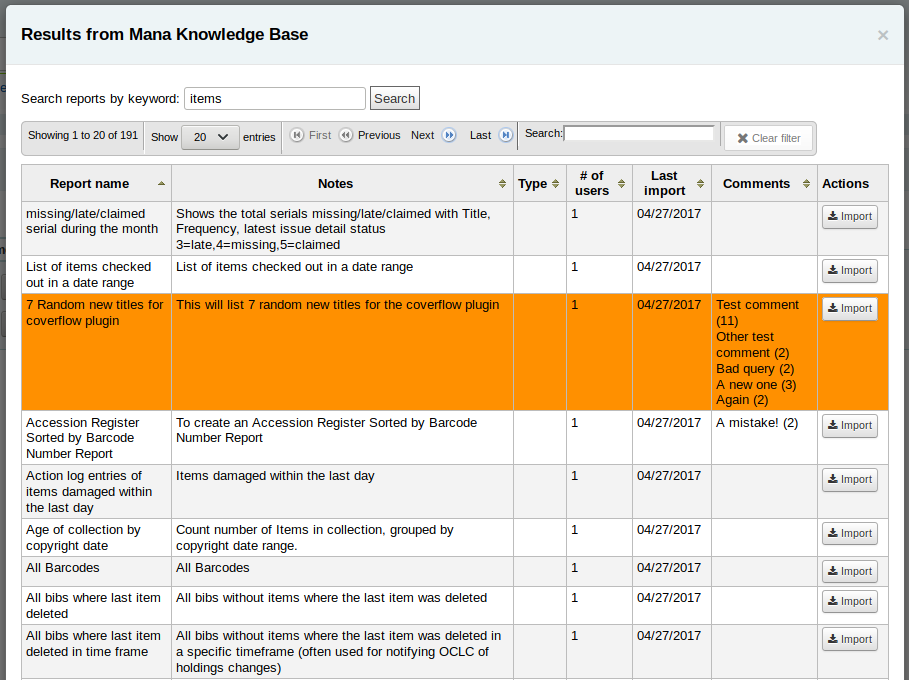

In the search results, you will see

  • the details of the report (name, notes and type)

  • how many people have used this entry (# of users)

  • when it was used for the last time (last import)

  • additional comments made by other Koha users (comments)


Click on ”Import” to import a copy of the report in your own saved reports.

You can then edit it, duplicate it, delete it, run it as you would any of your own reports.

Duplicate report

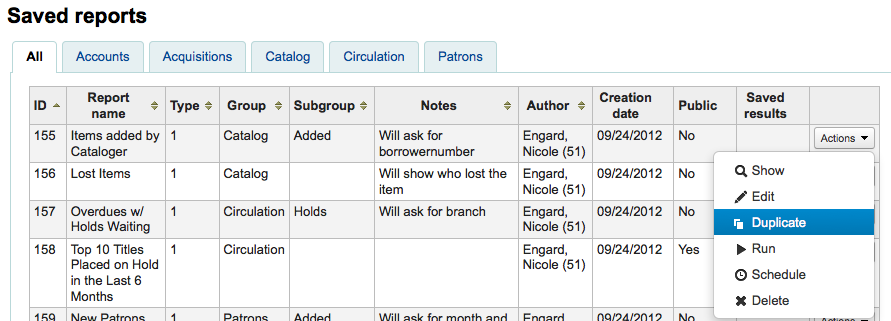

Reports can also be added by duplicating an existing report. Visit the ’Saved reports’ page to see all of the reports listed on your system already.


Till höger om varje rapport finns rullgardinsmenyn ’Åtgärder’. Klicka på den och välj ’Kopiera’ för att använda en befintlig rapport som grund för din nya rapport. Det ger dig en rapport med alla SQL-data ifyllda som sedan är lätt att redigera och spara om.

Edit custom reports

Every report can be edited from the reports lists. To see the list of reports already stored in Koha, click ’Use saved.’

List of saved reports, "All" tab is selected

Obs

  • You can customize the columns of this table in the ’Table settings’ section of the Administration module (table id: table_reports).

För att hitta den rapport du vill redigera kan du sortera kolumnerna genom att klicka på kolumnrubriken. Du kan också filtrera resultaten med filtermenyn till vänster eller använda flikarna för att hitta rapporter baserade på dina anpassade grupper.

Från denna lista kan du redigera anpassade rapporter genom att klicka på ’Åtgärder’ till höger om rapporten och välja ’Redigera’ från menyn som visas.

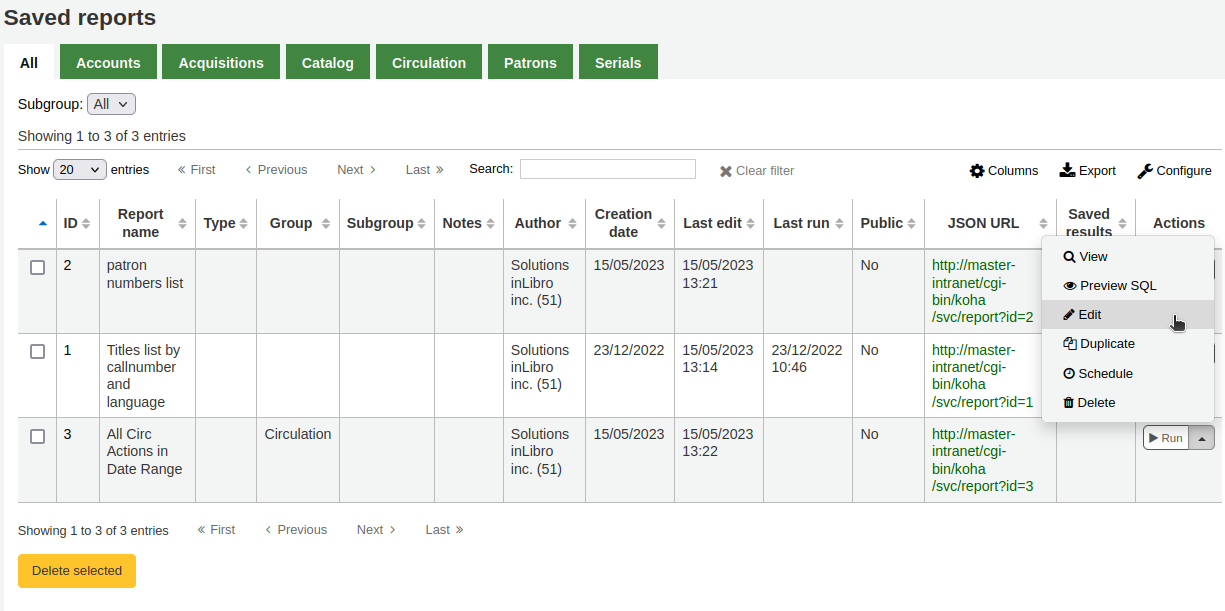

"Edit" option of the report action button

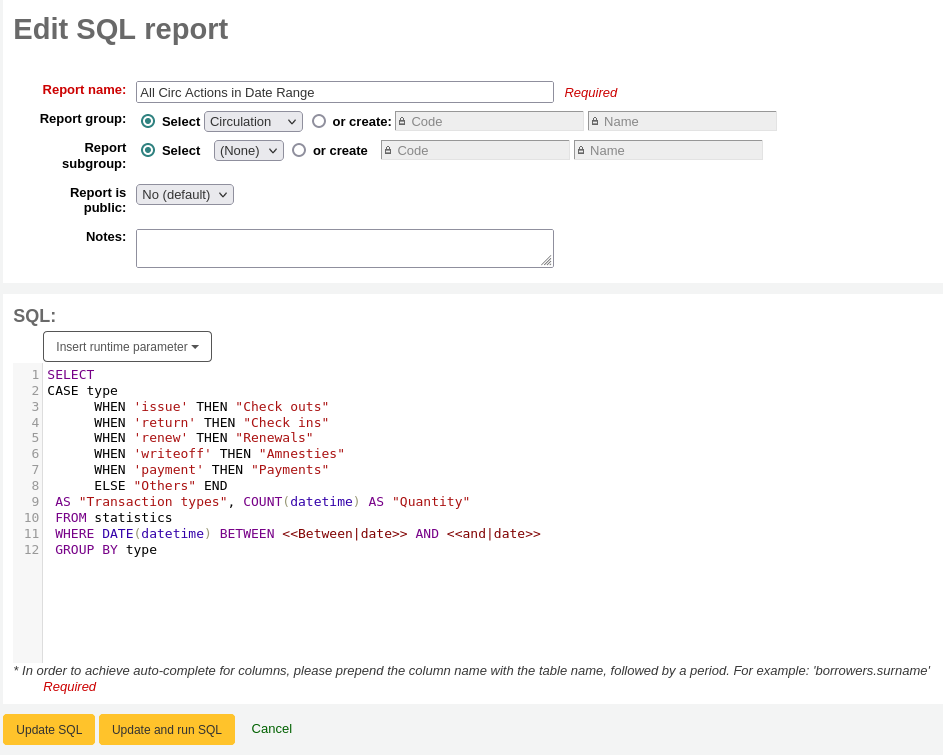

The form to edit the report will appear. Use the ”update button” to save your modifications or click on ”update and run SQL” to save and display the report results.

The edit report form with the 'update' button and 'save and run sql' button

Running custom reports

Observera

Only staff with the execute_reports permission (or the superlibrarian permission) will be able to run existing reports.

Once custom reports are saved to Koha, you can run them by going to the Saved Reports page and clicking the ’Run’ button to the right of the report.

List of saved reports, "All" tab is selected

When your report runs, you will either be asked for some values,

When running the report, the user is asked to choose a library from a drop-down menu and enter a surname in an input text field

or you will see the results right away.

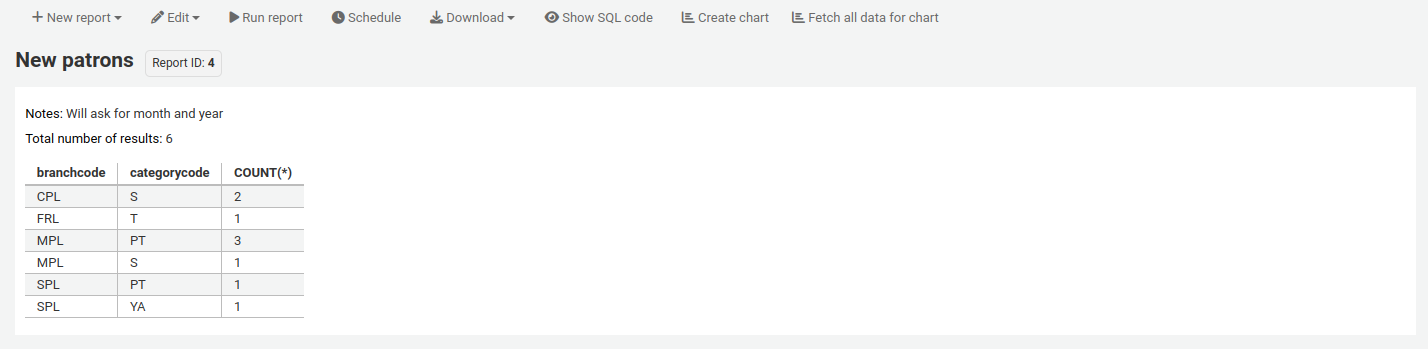

Page showing results from a report called New patrons. Buttons at the top are: New report, Edit, Run report, Schedule, Download, Show SQL code, Create chart, Fetch all data for chart. The report ID (4) is displayed next to the report name (New patrons). There is a note saying "Note: Will ask for month and year". Total number of results: 6. Columns are branchcode, categorycode, and COUNT(*). There are various values in the table.

From the results you can do various actions with the button bar at the top of the page.

  • New report: create a brand new report.

  • Edit:

  • Run report: rerun the report

  • Run with template: this button only appears if you have notice templates in the notices and slips tool that are for reports.

    Version

    This option was added to Koha in version 23.11.

    Tips

    To view the results in a format other than the traditional table, you can create a template in the notices and slips tool.

    For example, to view patron information in ’card’ form,

    • Go to Tools > Notices and slips.

    • Click ’New notice’, and choose ’Reports’.

    • Fill out the code and name for the slip. The name will be what appears in the ’Run with template’ menu.

    • In the ’Print’ template section, paste the code:

      [% FOREACH b IN data %]
      <div class="panel panel-default">
        <div class="panel-heading">[% b.surname %], [% b.firstname %]</div>
        <div class="panel-body">Expiration: [% b.dateexpiry %]</div>
        <div class="panel-footer">ID: [% b.borrowernumber %]</div>
      </div>
      [% END %]

    • Click ’Save’.

    • In a report with patron information, for example,

      SELECT * FROM borrowers LIMIT 50


      Click ’Run with template’ and choose the template.

    Instead of a table, the results will appear in ’card’ form.

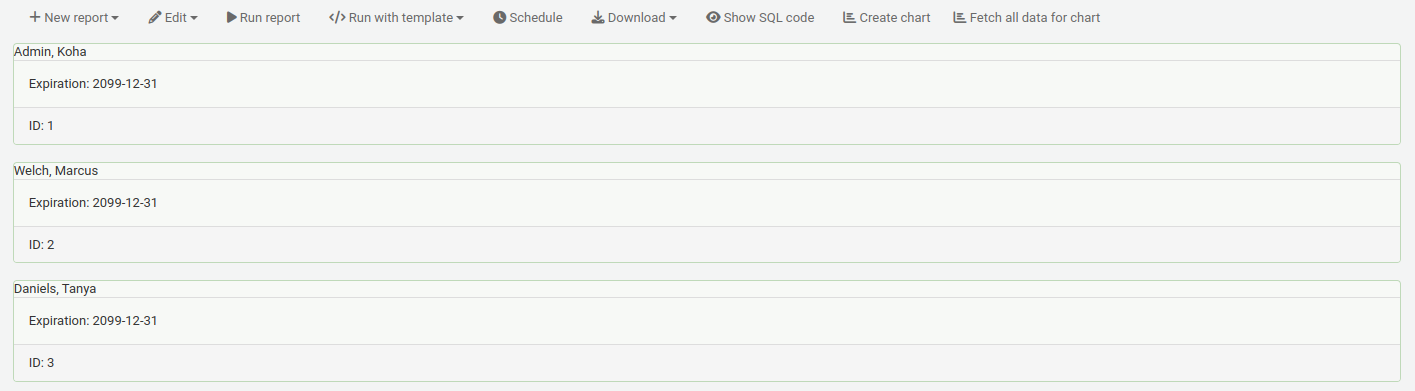

    Report results where patrons are displayed one after the other in separate 'cards' with the surname, name, expiration date and ID (borrowernumber).

  • Schedule: schedule the report to be run at a later time with the task scheduler tool

  • Download: download the results

    • Comma separated text (.csv): a comma separated text file is a CSV file and it can be opened by any spreadsheet application or a text editor

    • Tab separated text: a tab separated text can also be opened by any spreadsheet or a text editor

    • Open Document Spreadsheet: ODS is an open-source spreadsheet file that can be opened in most spreadsheet applications

    • Rendered template: this option only appears if there are notice templates in the notices and slips tool that are for reports, and the report was ”run with template” (see above). It allows you to download the report results with the template applied.

      Version

      This option was added to Koha in version 23.11.

  • Show SQL code: show the SQL query used to get those results

  • Create chart: create a pie chart or a line/bar chart with the visible results

  • Fetch all data for chart: make all the data visible to make a chart with all the data

Send report output to batch modification tools

After running a report that contains itemnumbers, biblionumbers and/or patron cardnumbers the list of numbers can be imported directly into the relevant batch modification tool by clicking the ’Batch operations with X visible records’ button in the report results. The X depends on the number of records you have chosen to display on screen (up to 1000).

Results of a report called 'Batch edit report', the button 'Batch operations with 20 visible records' is open and the options are: for patron records batch patron modification and patron card creator, for bibliographic records batch record modification, batch record deletion, and add to list, and for item records batch item modification and batch item deletion.

Statistics reports

Statistic reports will show you counts and sums. These reports are all about numbers and statistics, for reports that return more detailed data, use the guided report wizard. These reports are limited in what data they can look at, so it’s often recommended to use custom reports for official end of the year statistics.

Observera

Only staff with at least one of the reports permissions (or the superlibrarian permission) will be able to use the statistics wizards.

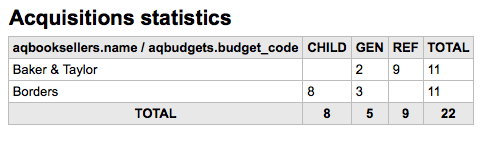

Inköpsstatistik

Obs

These reports are limited in what data they can look at, so it’s often recommended to use custom reports for official end of the year statistics.

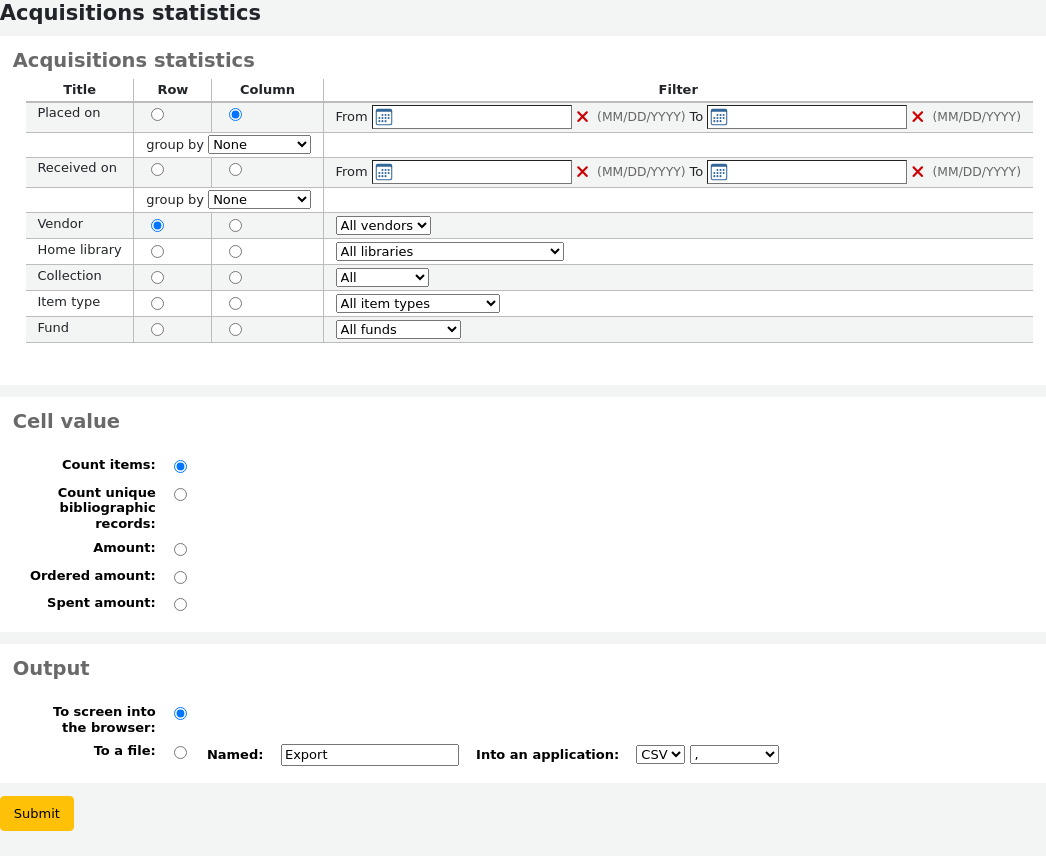

Using the form provided, choose which value you would like to appear in the column and which will appear in the row.

Using the form provided, choose which value you would like to appear in the column and which will appear in the row.

Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.


Du kan även exportera till en fil som du kan bearbeta efter behov.

När du genererar rapporten kan du välja mellan att räkna eller summera värdena.

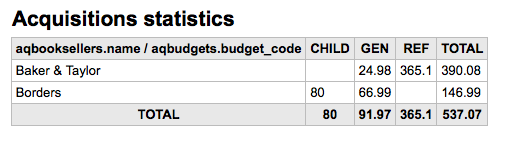

Väljer du belopp ändras resultaten så att de visas som summan av använda belopp.


Låntagarstatistik

Obs

These reports are limited in what data they can look at, so it’s often recommended to use custom reports for official end of the year statistics.

Using the form provided, choose which value you would like to appear in the column and which will appear in the row.

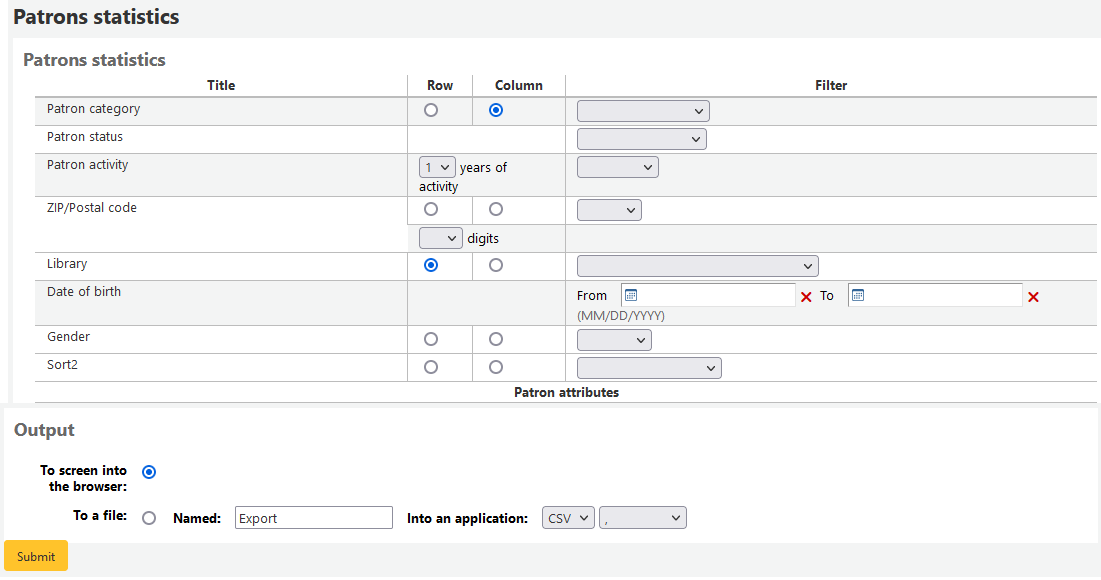

View of patron form for patron statistics

Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.

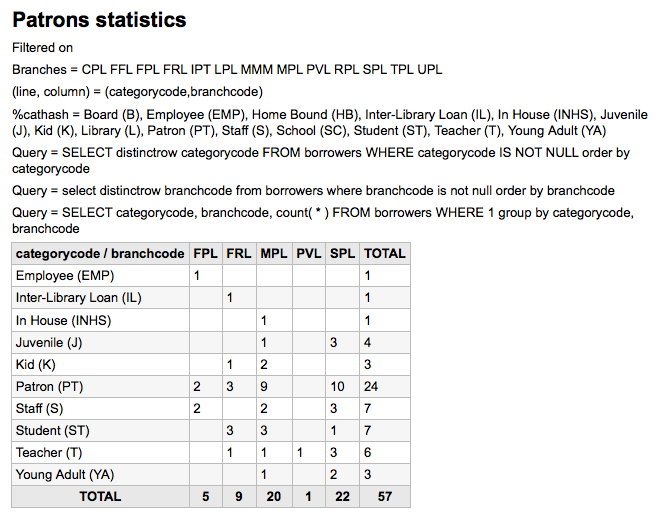

Baserat på dina val, kan du se frågeinformation ovanför resultattabellen. Du kan också välja att exportera till en fil som du kan redigera efter behov.

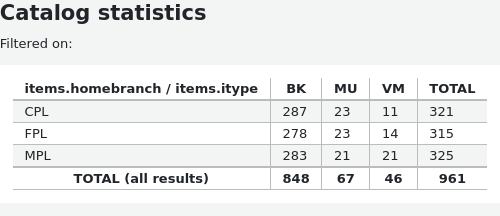

Katalogstatistik

Obs

These reports are limited in what data they can look at, so it’s often recommended to use custom reports for official end of the year statistics.

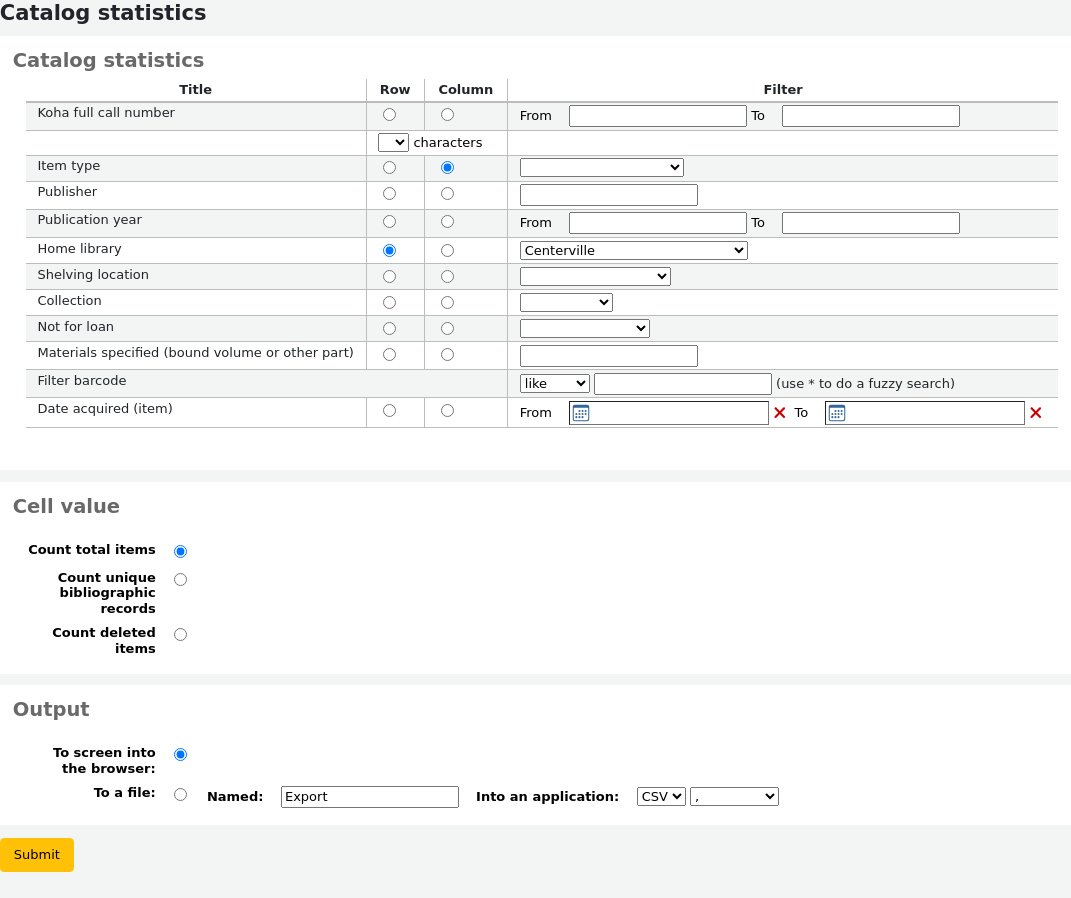

Using the form provided, choose which value you would like to appear in the column and which will appear in the row.


Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.


Du kan även exportera till en fil som du kan bearbeta efter behov.

Utlåningsstatistik

Obs

These reports are limited in what data they can look at, so it’s often recommended to use custom reports for official end of the year statistics.

Using the form provided, choose which value you would like to appear in the column and which will appear in the row.

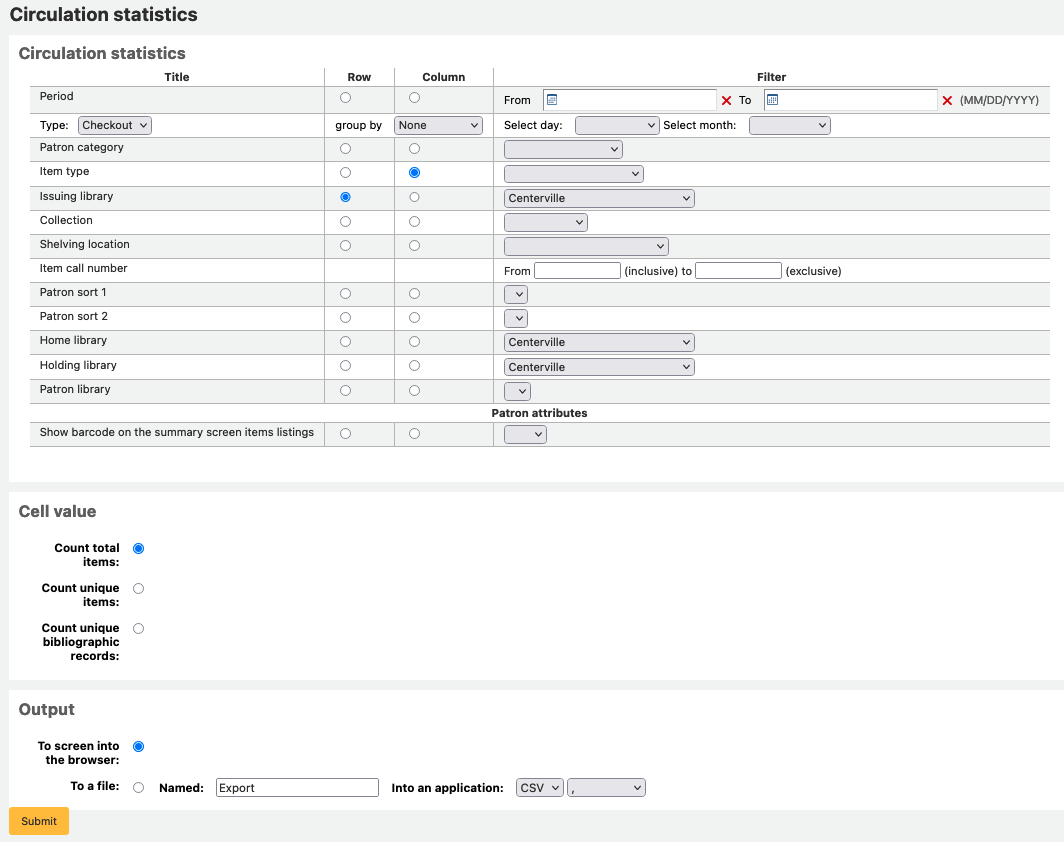

Circulation statistics reporting wizard, with options to select the report parameters

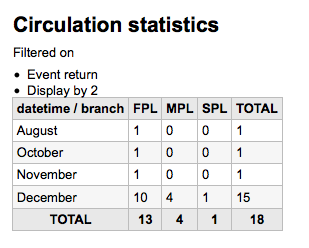

Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.


Du kan även exportera till en fil som du kan bearbeta efter behov.

Obs

To get a complete picture of your monthly or daily circulation, you can run the report twice, once for ’Type’ of ’Checkout’ and again for ’Renewal.’

This report uses ’Period,’ or date, filtering that allows you to limit to a month by simply selecting the first day of the first month through the first day of the next month. For example, 10/1 to 11/1 to find statistics for the month of October.

  • To find daily statistics, set your date range.</br> Example: ”I want circulation data starting with date XXX up to, but not including, date XXX.”

  • För en hel månad är ett exempel på ett intervall: 11/01/2009 till 12/01/2009

  • För ett helt år är ett exempel på ett intervall: 01/01/2009 till 01/01/2010

  • För en enda dag är ett exempel: 11/15/2009 till 11/16/2009 för att hitta det som lånades ut och återlämnades den 15:e

Tracking in house use

Using the Circulation statistics reporting wizard you can run reports on in house usage of items simply by choosing ’Local use’ from the ’Type’ pull down:

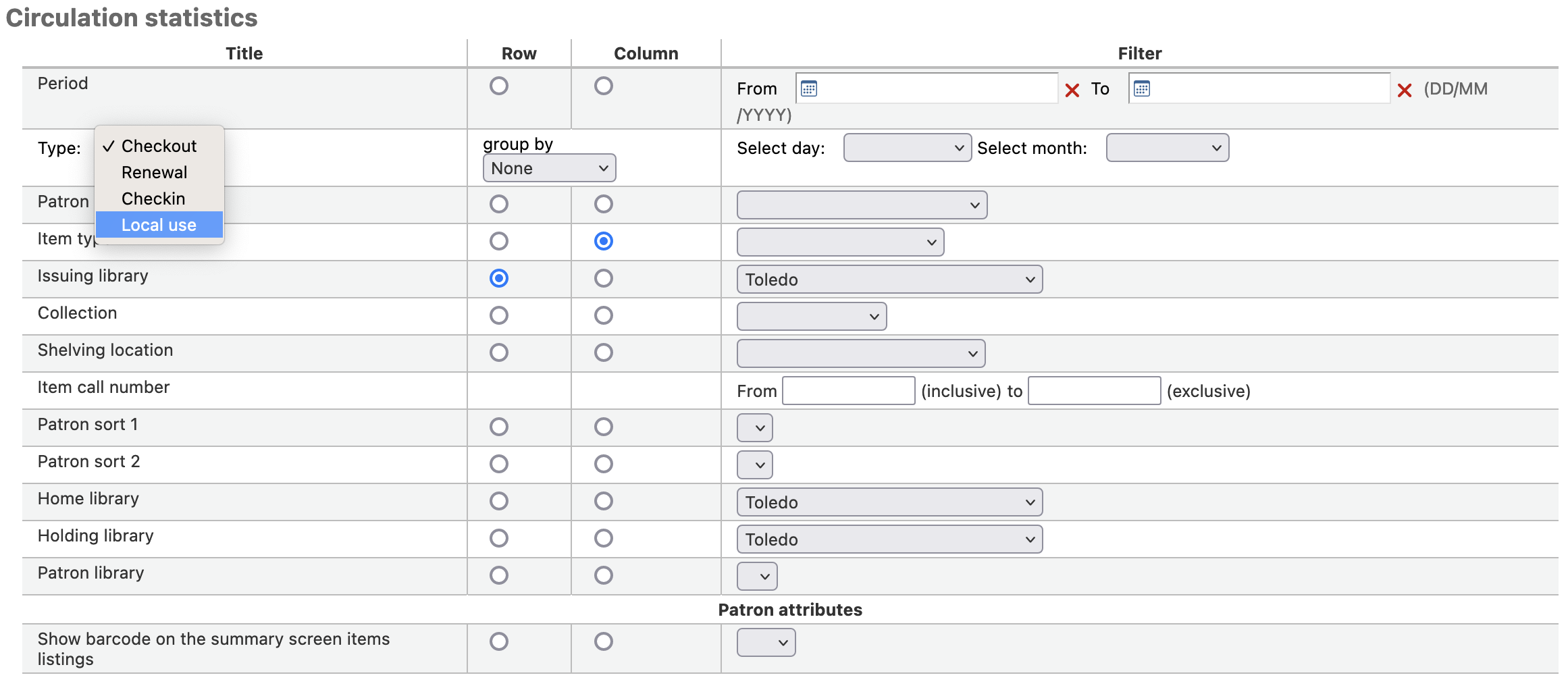

Circulation statistics reporting wizard with Type drop-down menu open and "Local use" highlighted.

Periodikastatistik

Obs

These reports are limited in what data they can look at, so it’s often recommended to use custom reports for official end of the year statistics.

I formuläret väljer du hur du vill lista periodika i ditt system.

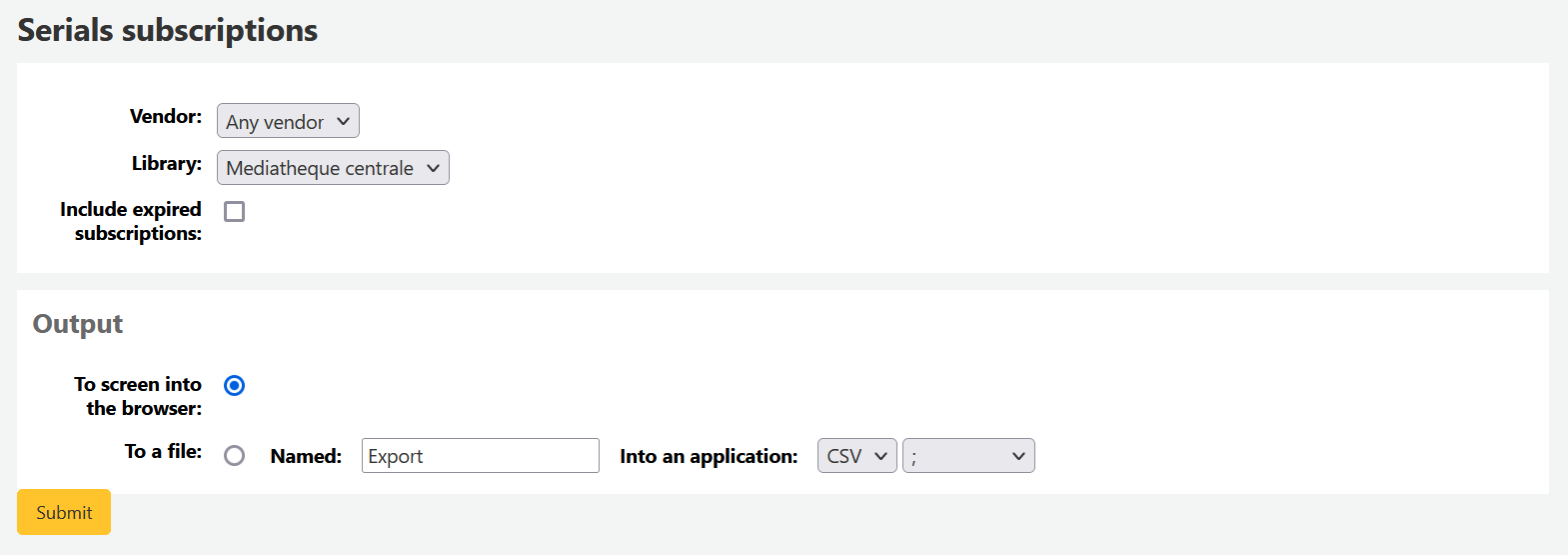

In the reports module, the form to launch statistics in the serials

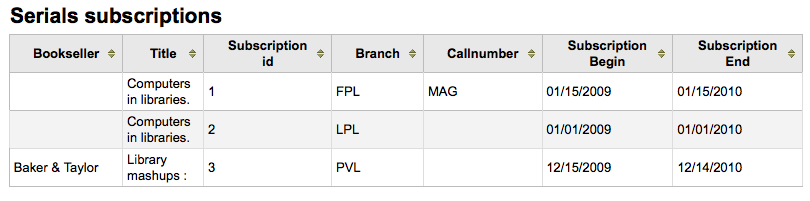

Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.


Du kan även exportera till en fil som du kan bearbeta efter behov.

Reservationsstatistik

Obs

These reports are limited in what data they can look at, so it’s often recommended to use custom reports for official end of the year statistics.

I formuläret kan du se statistik för reservationer, slutförda reservationer, annullerade reservationer och annat för ditt bibliotek. I formuläret väljer du värdet du vill visa i kolumnen och vilket värde som ska visas på raden. Du kan också välja från filtren längst till höger i formuläret.

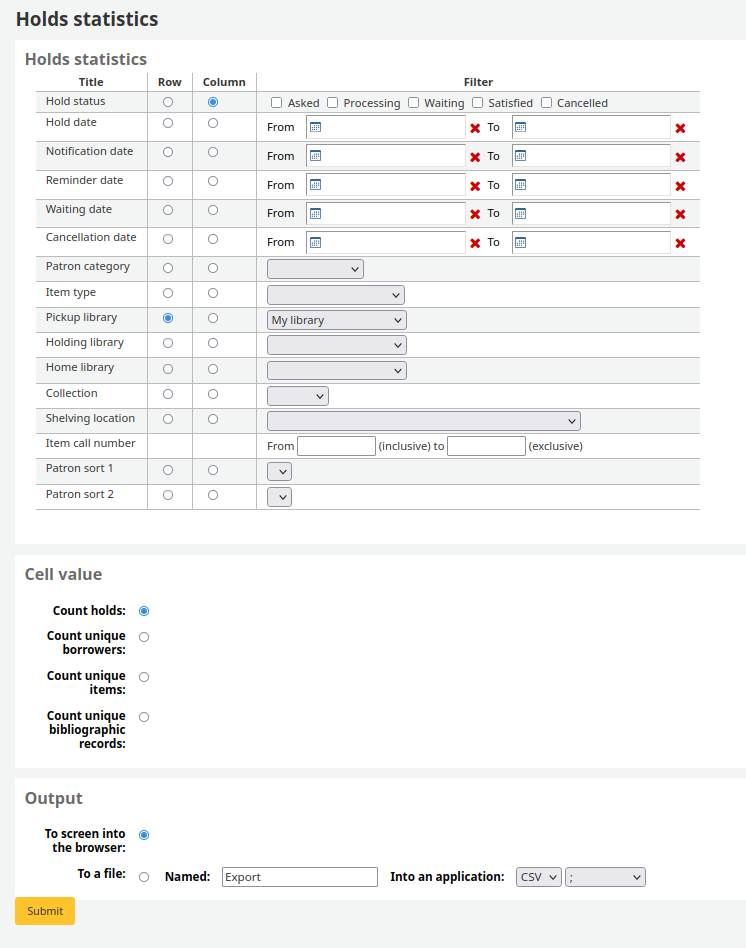

Form for holds statistics

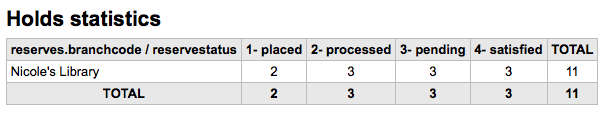

Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.


Du kan även exportera till en fil som du kan bearbeta efter behov.

Låntagare med flest lån

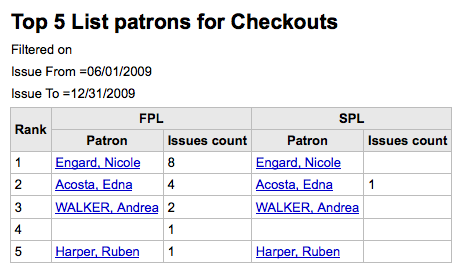

Denna rapport listar helt enkelt bara de låntagare som lånat mest.

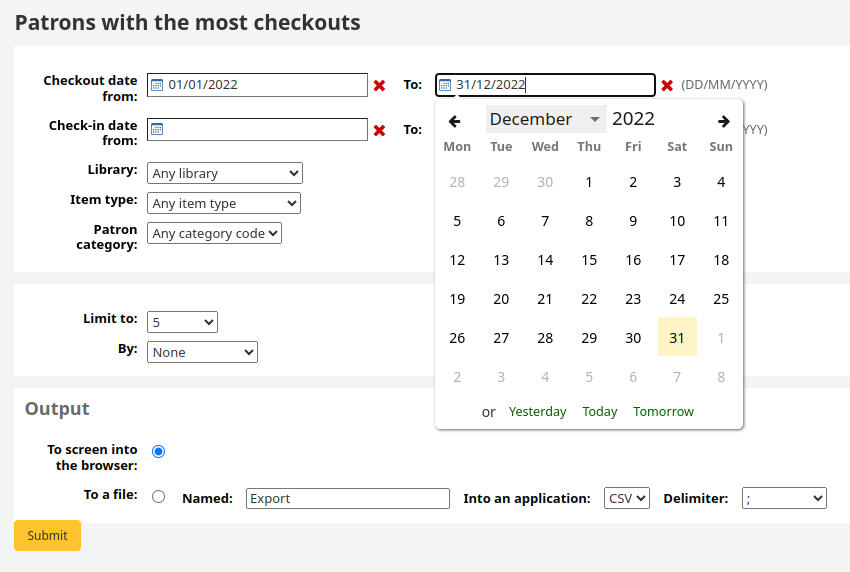

Form to select parameters to run Top checkouts report

Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.


Du kan även exportera till en fil som du kan bearbeta efter behov.

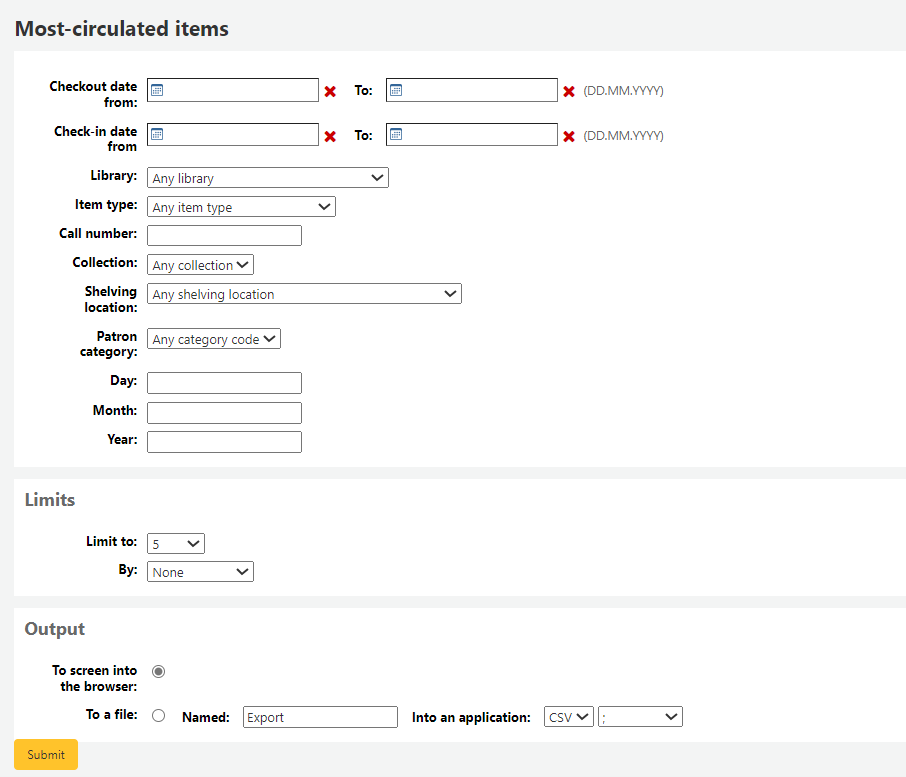

Mest utlånade exemplar

Denna rapport listar helt enkelt bara de exemplar som lånats ut mest.


Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.


Du kan även exportera till en fil som du kan bearbeta efter behov.

Låntagare som inte lånat

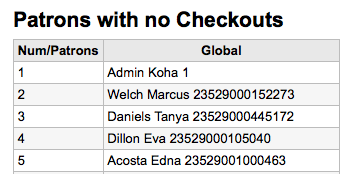

Denna rapport listar de låntagare i ditt system som inte lånat några exemplar.

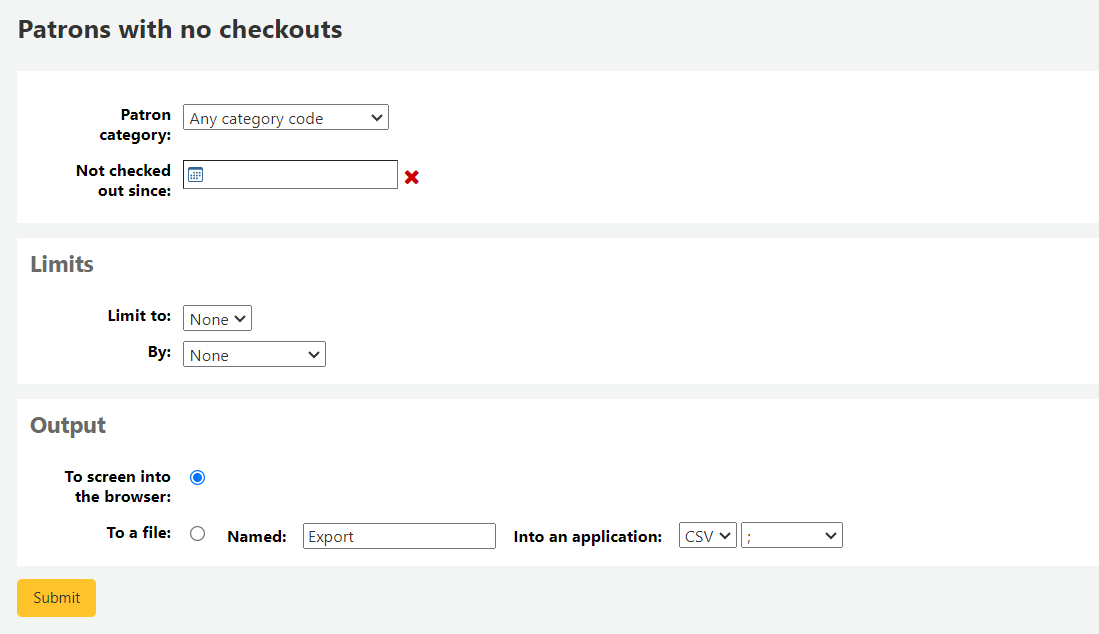

Report form for creating a report of patrons who have never checked out items

Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.


Du kan även exportera till en fil som du kan bearbeta efter behov.

Exemplar utan lån

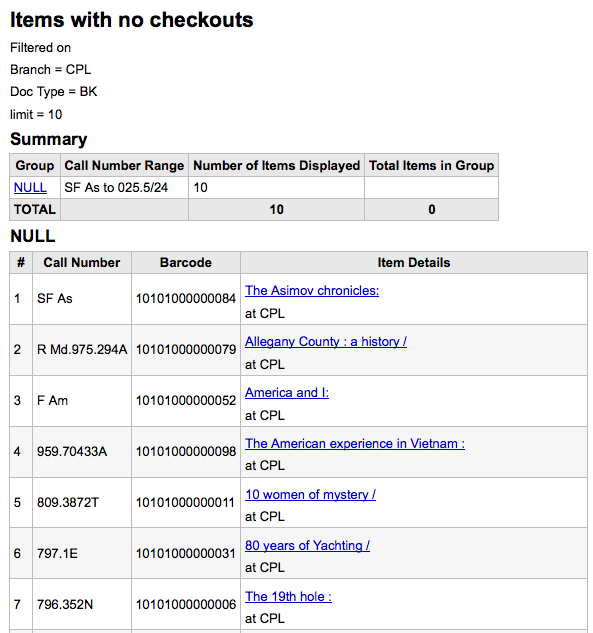

Denna rapport listar exemplar i din samling som aldrig lånats ut.

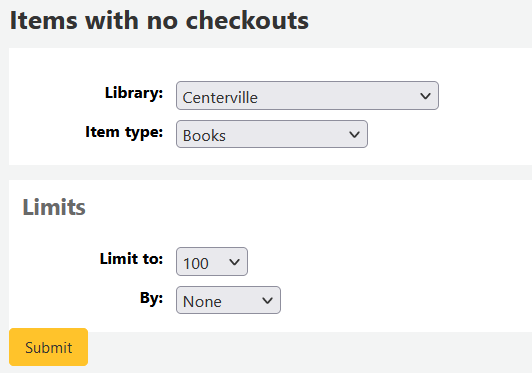

Form for the report of items with no checkouts

Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.


Du kan även exportera till en fil som du kan bearbeta efter behov.

Katalog per exemplartyp

This report will list the total number of items of each item type per branch.

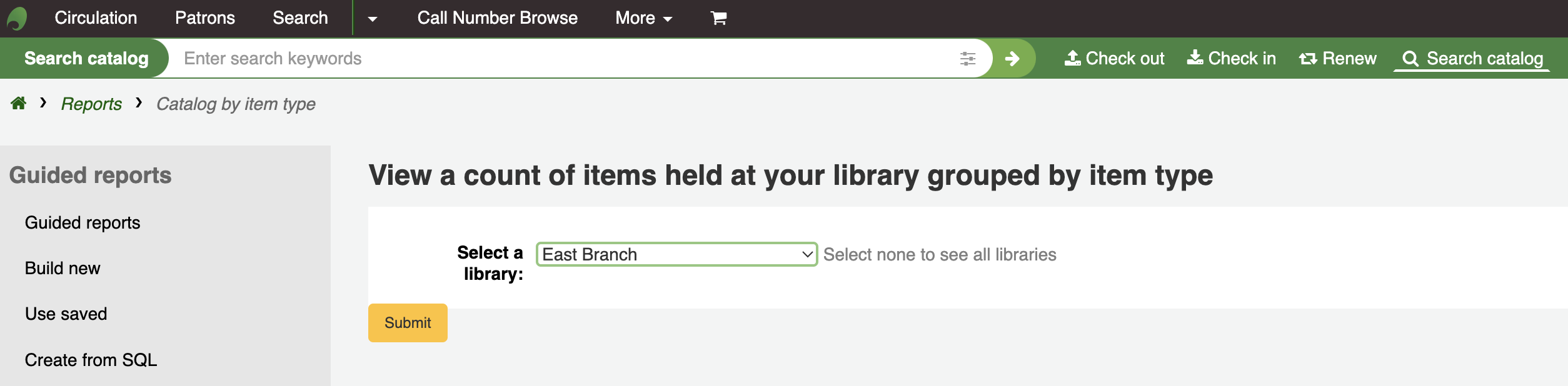

Katalog per exemplartyp

Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.

Catalog by item type results

Du kan även exportera till en fil som du kan bearbeta efter behov.

Förlorade exemplar

This report will allow you to generate a list of items that have been marked as Lost within the system

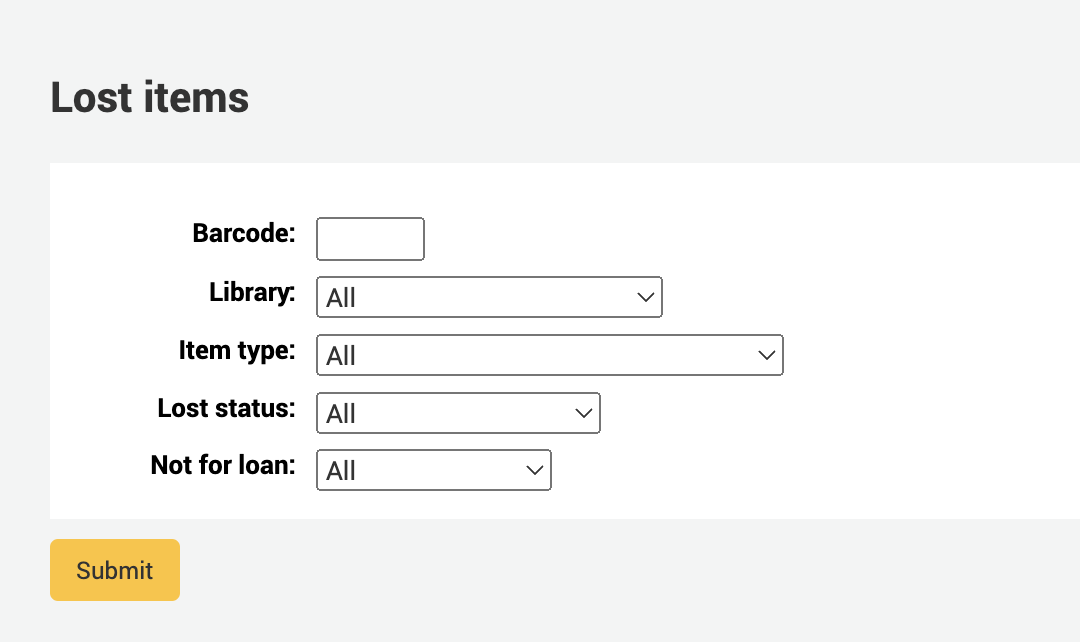

Input for lost item report

Once you have chosen parameters, you will see the corresponding list of items.

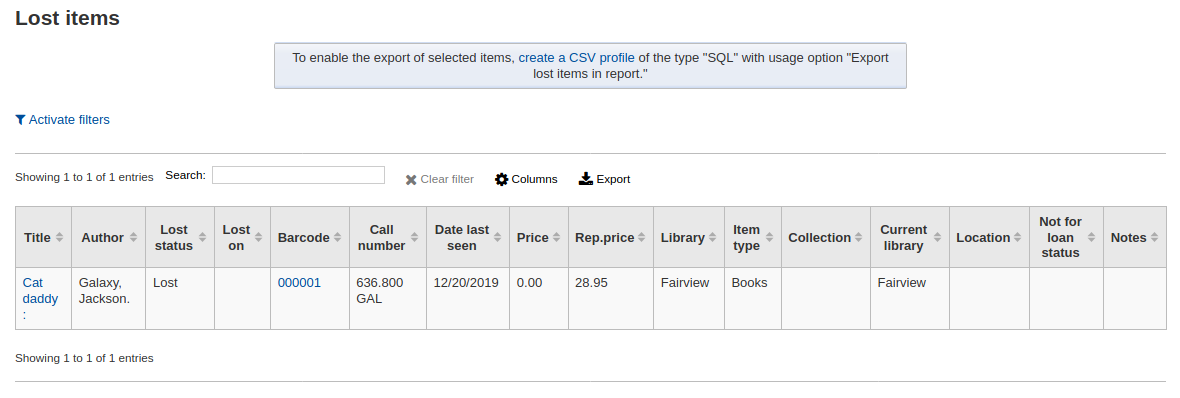

Results of lost item report

Obs

  • You can customize the columns of this table in the ’Table settings’ section of the Administration module (table id: lostitems-table).

Orders by fund

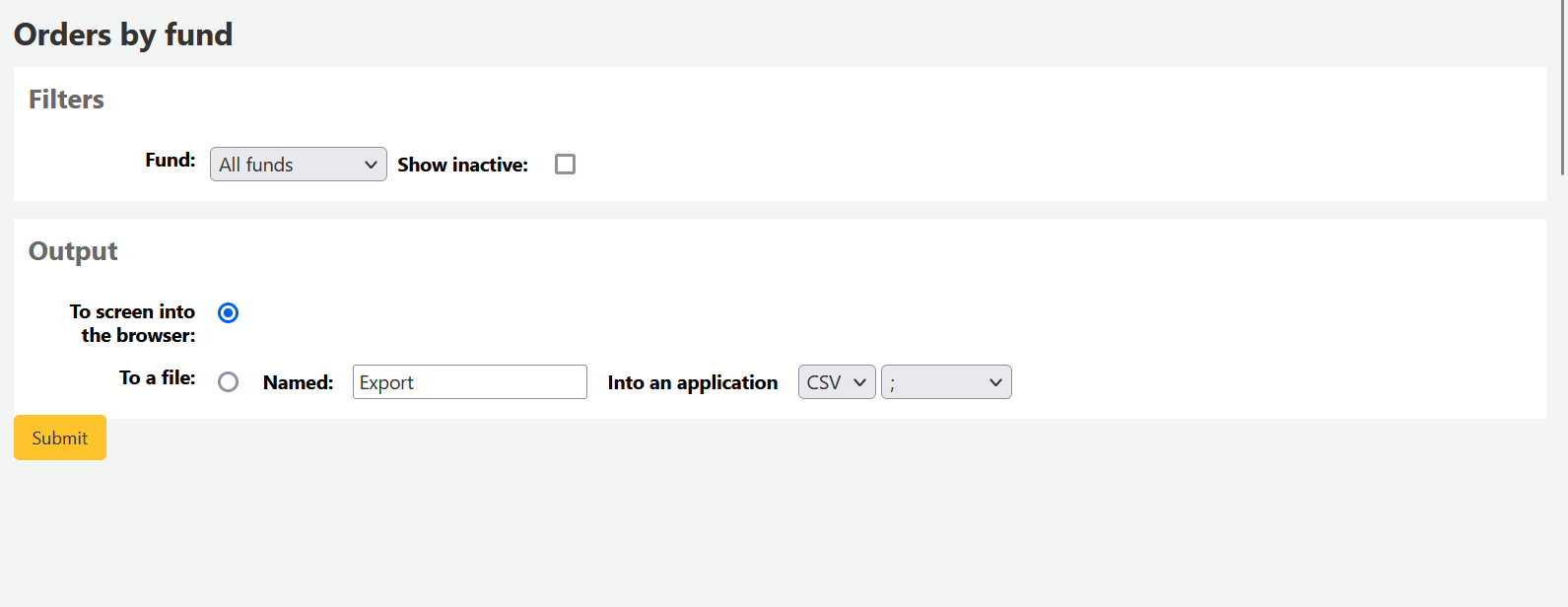

If you use the Acquisitions module, you will be able to see all the items that were ordered in each fund.


Once you choose the fund you wish to view, you can export the results or view them in the browser. If you choose to view them directly, you will be shown the list of orders.

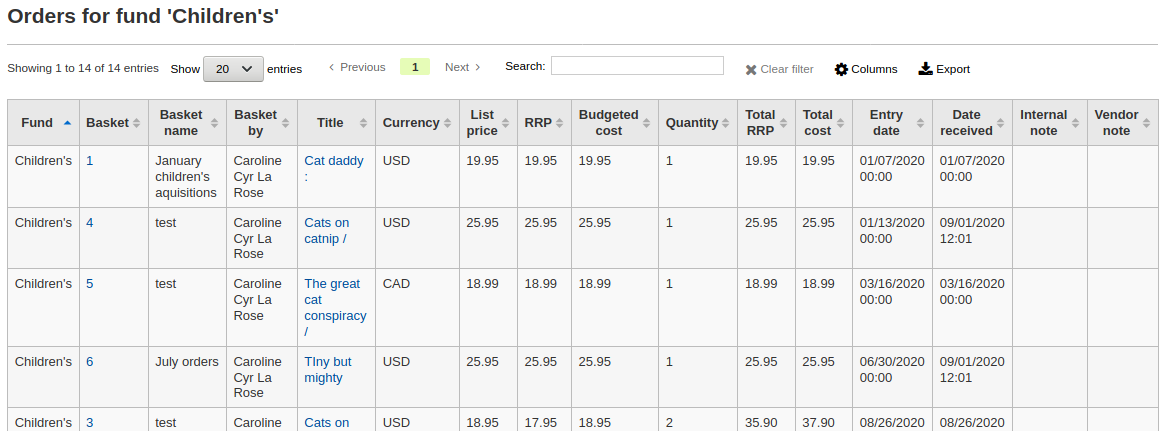

Example of a report result of Orders by fund

Obs

  • You can customize the columns of this table in the ’Table settings’ section of the Administration module (table id: funds-table).

Genomsnittlig lånetid

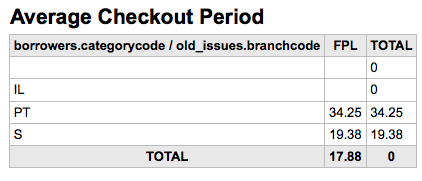

This report will list the average time items are out on loan based on the criteria you enter:

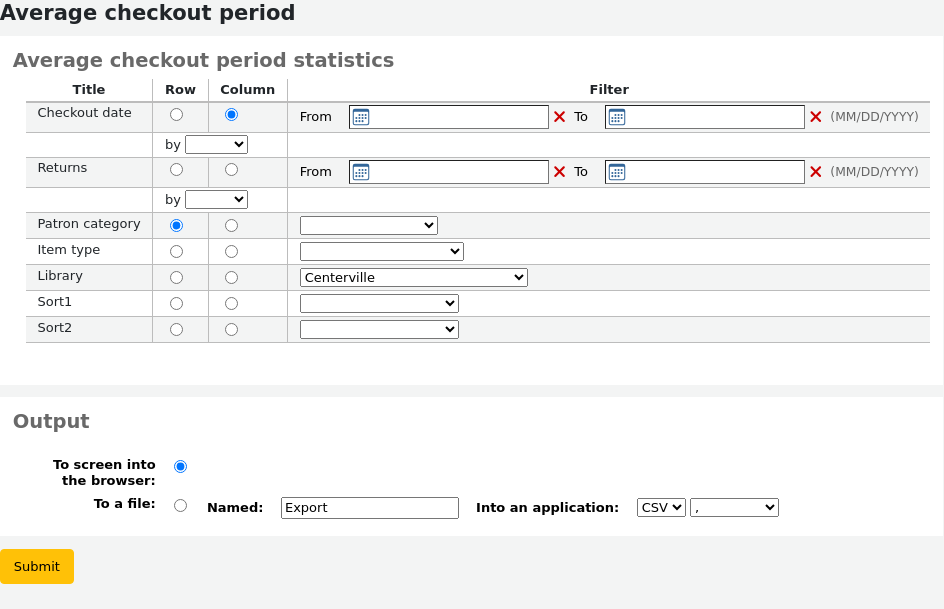

Wizard to generate report for average loan time, with options to select the report parameters (checkout date, patron category, item type...)

Om du väljer att skicka till webbläsaren kommer resultaten att visas på skärmen.


Du kan även exportera till en fil som du kan bearbeta efter behov.

Report dictionary

The report dictionary is a way to pre-define common filters you’d like to apply to your reports. This is a good way to add in filters that the report wizard doesn’t include by default. To add a new definition, or filter, click ’New definition’ on the reports dictionary page and follow the 4 step process.

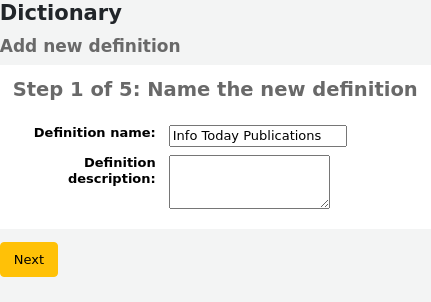

Steg 1: ge definitionen ett namn och ange en beskrivning om det behövs


Steg 2: välj vilken modul frågorna ska ställas mot.

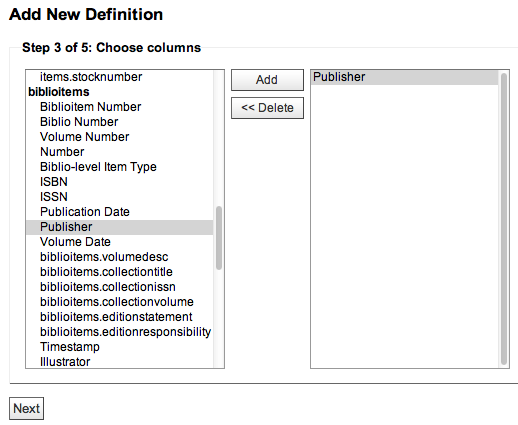

Steg 3: välj kolumnerna du är intresserad av från de visade tabellerna.

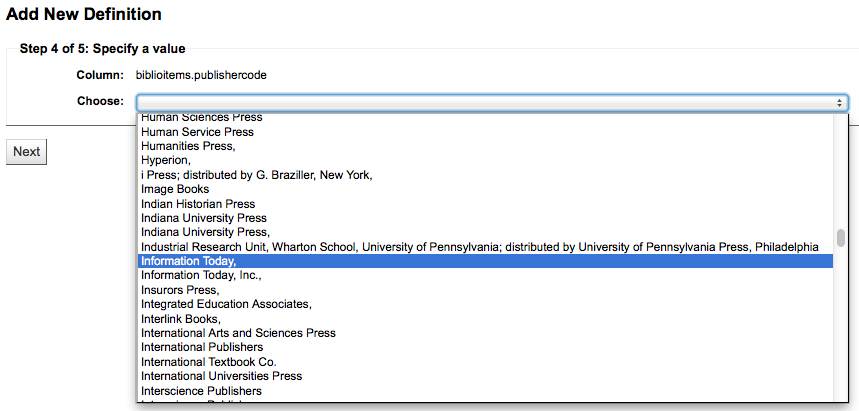

Steg 4: välj värden från fälten. Dessa kommer automatiskt att fyllas i med alternativ från din databas.

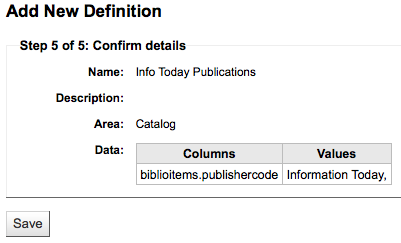

Bekräfta dina val för att spara definitionen.

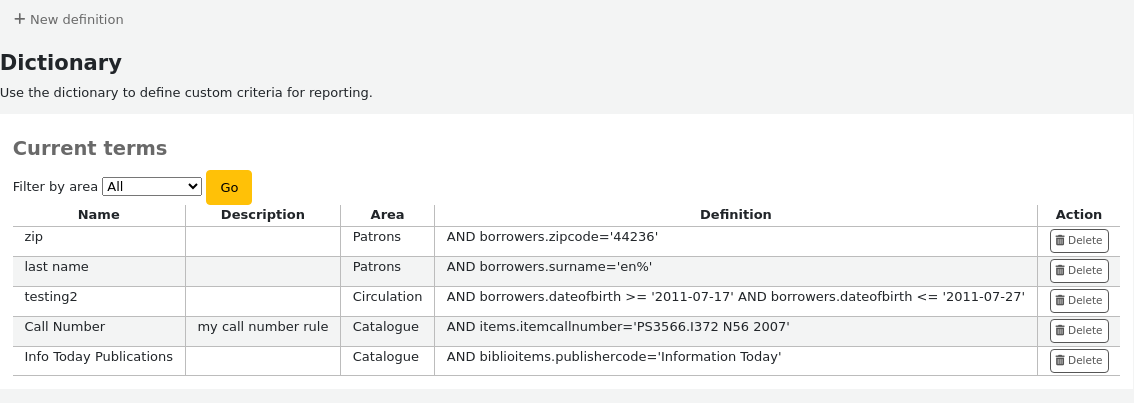

Dina definitioner kommer att visas på sidan Fördefinierade rapportfilter


När du sedan genererar rapporter för modulen för vilken du skapade värdet, kommer du att se ett alternativ att begränsa på definitionen längst ner, under de vanliga filtren.


Report plugins

Some plugins that are available can be used to make or enhance reports.

  • Get there: More > Reports > Report plugins > Report plugins

Observera

Only staff with the report permission (or the superlibrarian permission) will be able to access report plugins.

From this page, you will see only report-type plugins.

See the managing plugins section of this manual to learn how to manage your report-type plugins.
