This module was introduced in version 23.11 of Koha.

The preservation module can be accessed in two different ways: on the main page of the staff interface by clicking ‘Preservation’ or through the ‘More’ menu on the top of the page.

The preservation module in Koha is used for integrating preservation treatments into the workflow and keep track of them. For every single step of the preservation workflow, data is attached to the items. For each workflow, items go to a waiting list before being added to a train.

In order to use the module, you will first need to enable it using the PreservationModule system preference. Second, add the statuses you will need to track your items throughout your workflow to the NOT_LOAN authorized value category.

  • Get there: More > Preservation


Only staff with the preservation permission (or the superlibrarian permission) will have access to this module.


The preservation settings are meant for two types of information:

  1. storing the chosen item statuses (set up as NOT_LOAN authorized values) for the workflow;

  2. adding new processings that are meant to be attached to trains.

  • Get there: More > Preservation > Settings

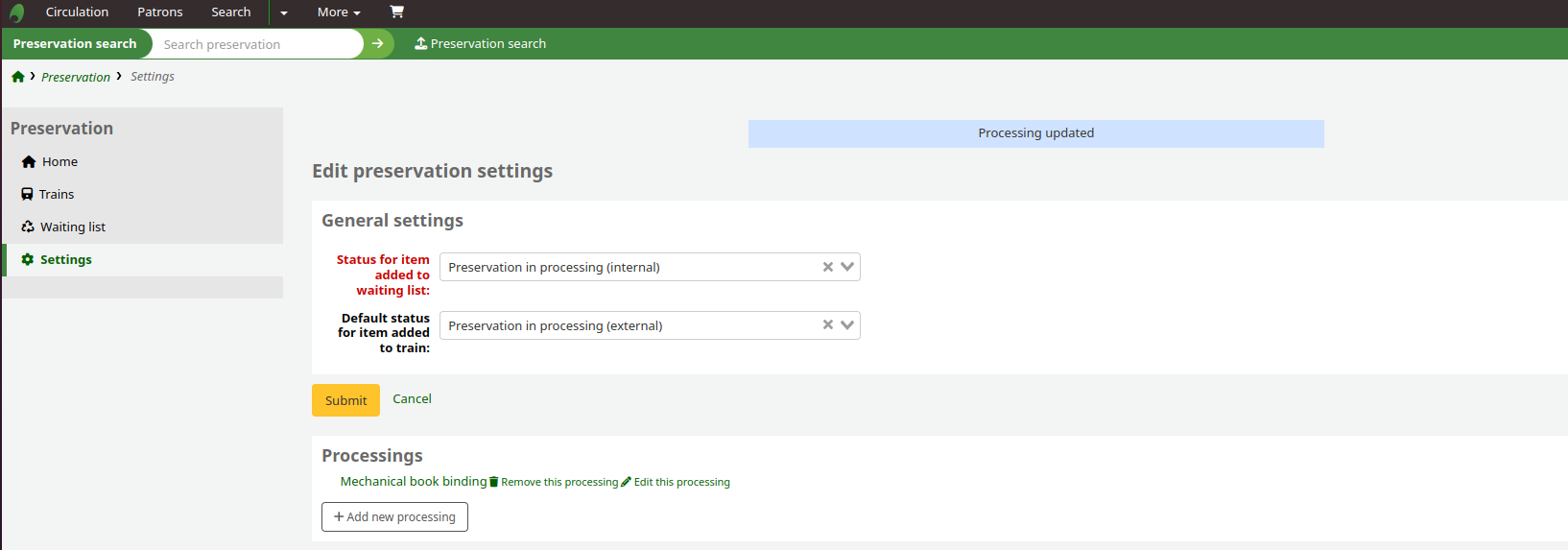

Settings of the preservation module, on the top are drop-down menus to the NOT_LOAN status, followed by the list of processings

General settings

In this section, you can set two different item statuses chosen from the NOT_LOAN authorized values category:

  • Status for item added to waiting list: default items.notforloan status for each item entered in the waiting list (beginning of the preservation workflow).

  • Default status for item added to train: default items.notforloan status for any items entered in a train (monitoring of preservation workflow).

It is also possible to set these through the PreservationNotForLoanWaitingListIn and PreservationNotForLoanDefaultTrainIn system preferences.


To add a new processing, click on the ‘Add new processing’ button.

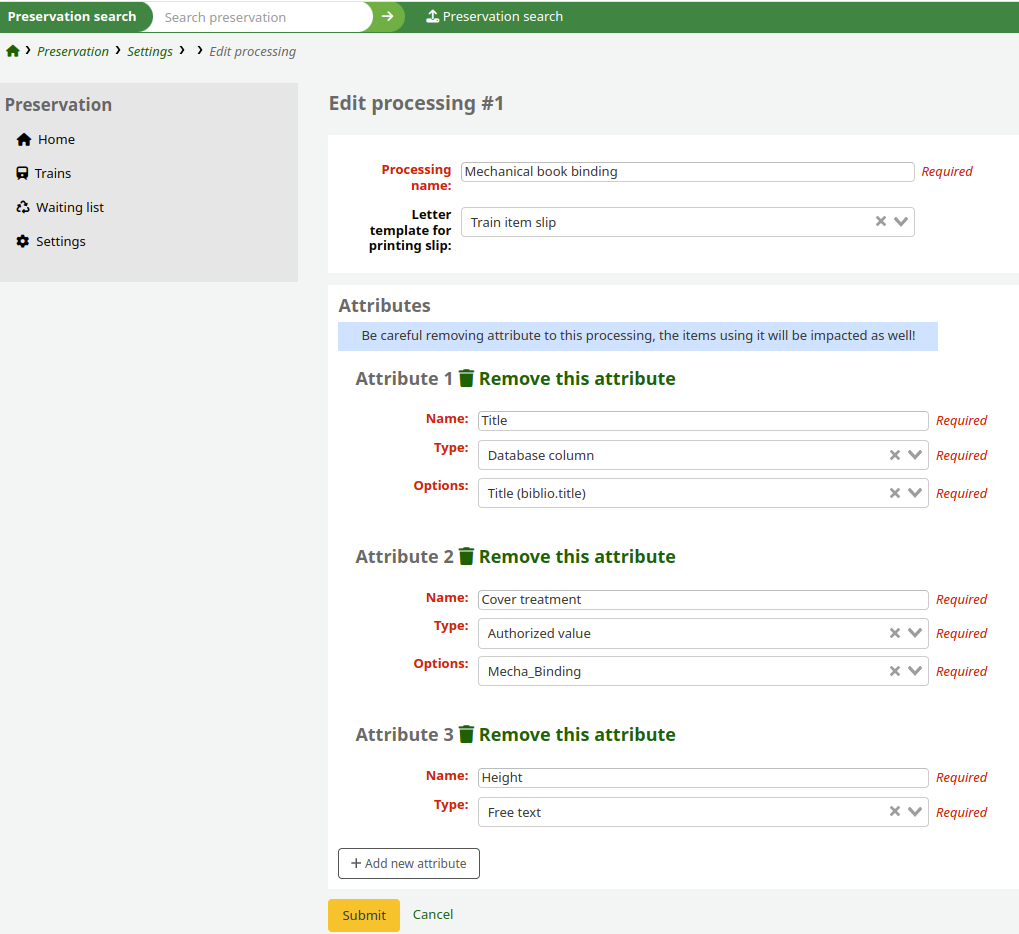

A form where you can set the processings used by the preservation module

  • Processing name: this is the name that will appear in the drop-down menu when creating a new train.

  • Letter template for printing slip: notice used to print a list of items in a train.

Each processing owns a list of attributes. To add a new attribute, click on the ‘Add new attribute’ button.

  • Name: the name of the attribute. It will appear as one of the heads of the train table the processing has been attached to.

  • Type: The type of data that will be needed for the train. It can be an authorized value, free text or a database column.

  • Options: appears if a type of authorized value or database column has been selected. It will show a drop-down menu of the possible values that are to be extracted for the said attribute.


For ‘Type’ and ‘Options’ fields, autocompletion is available: start typing in the box to quickly find the desired value.


Be sure to have your processings well figured out before creating them on Koha. While processings may be editable afterwards, we recommend not to do so in case they have already been attached to a train.

If you do need to make changes, it is advised to create a new processing instead.

Waiting list

The waiting list is the first step of the preservation workflow. It is to be considered as the Preservation module entrance hall for the items.

  • Get there: More > Preservation > Waiting list

Adding an item the waiting list will update its ‘Not for loan’ status according to the value defined in the preservation settings. As long as its status does not change again, the item will remain in the waiting list.

This allows staff to make the item unavailable even though it has not yet been sent away for preservation.

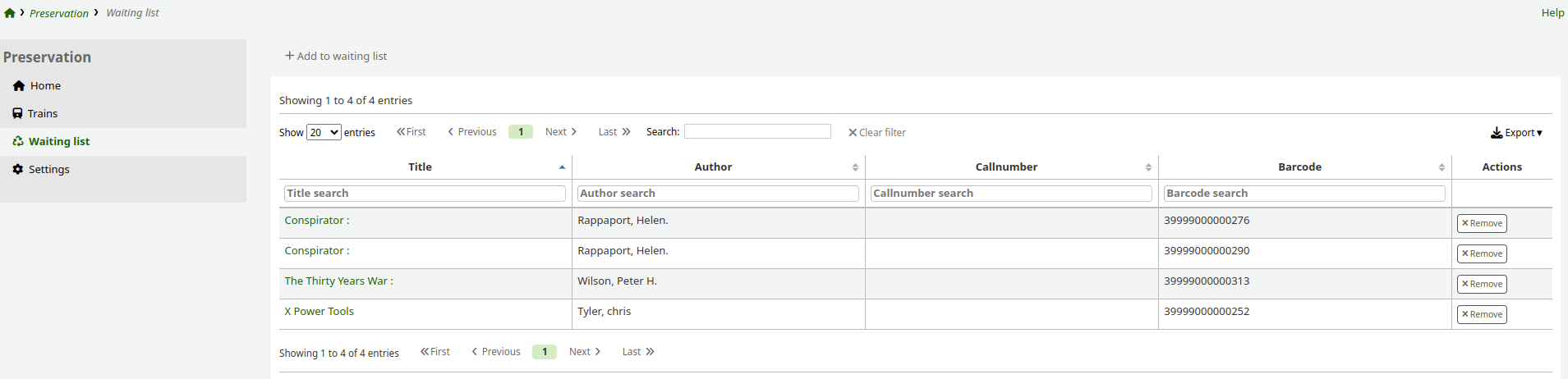

The waiting list, the entrance hall of items into the preservation module, before being inserted into trains

Add to waiting list

To add items to the waiting list, click on the ‘Add to waiting list’ button.

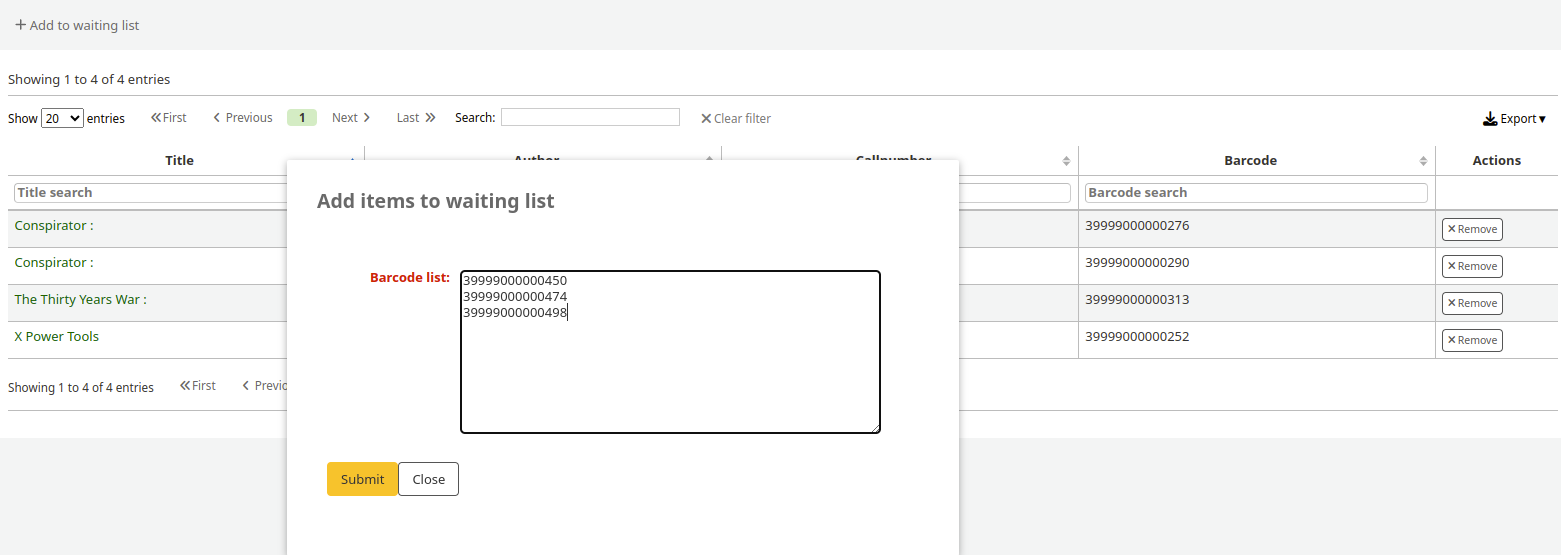

pop-up window to add items into the preservation module

A pop-up window appears, with an input field. Type in or scan your barcodes.


Enter one barcode per line, without spaces or commas. If barcodes are entered incorrectly, only the last one in the list will be added.

After clicking ‘Submit’, your new items will show in the table.

A new button to ‘Add last x items to a train’ also appears. You can use this if you want to immediately add your items to a train in a batch.


The trains page is the hub of the preservation module. This is where you will create and monitor all your preservation trains.


The term ‘train’ has been chosen for two main reasons.

  • Firstly, because other terminology - ‘cart’, ‘basket’, ‘batch’, etc. - was already in use for specific features in other Koha modules.

  • Secondly, the term ‘train’ is commonly used by French librarians because the physical book carts look like linked wagons when lined up.

  • Get there: More > Preservation > Trains

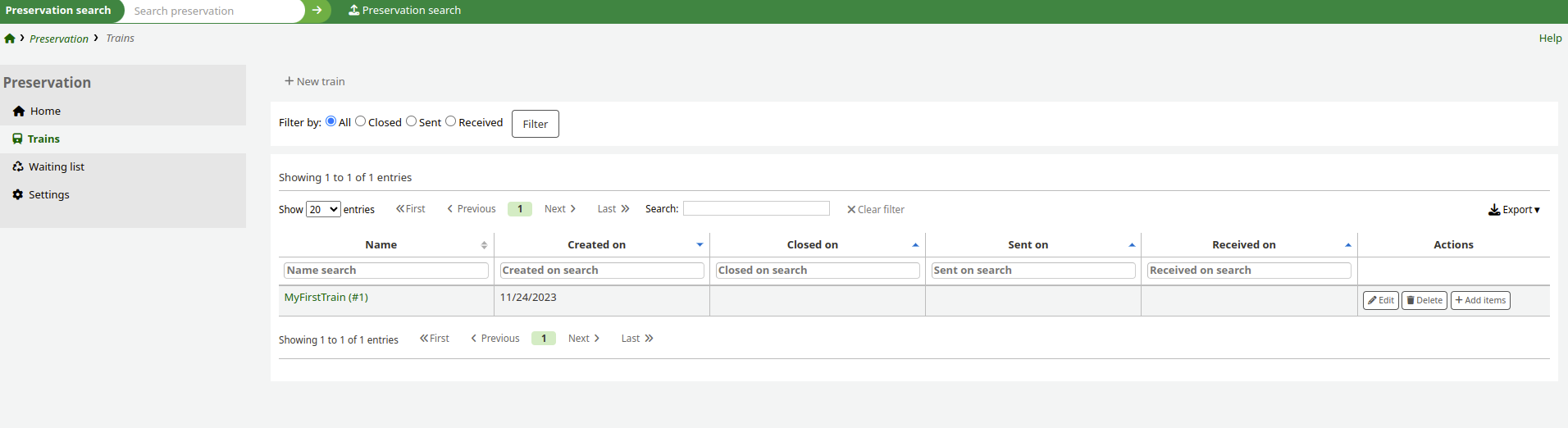

The trains page, where all the preservation trains are listed and archived

This is the list of all your trains. The table contains the following information:

  • Name: the name you gave to the train

  • Created on: the date the train was initiated

  • Closed on: the date you decided no item can be added to the train anymore

  • Sent on: the date all the train items are physically sent to the bookbinder

  • Received on: the date the train items are physically returned to the library

  • Actions:

    • Edit: to edit the train’s settings

    • Delete: to remove the train from the page

    • Add items: to directly add items from the waiting list to the train with a barcode

New train

To add a train, click on the ‘New train’ button.

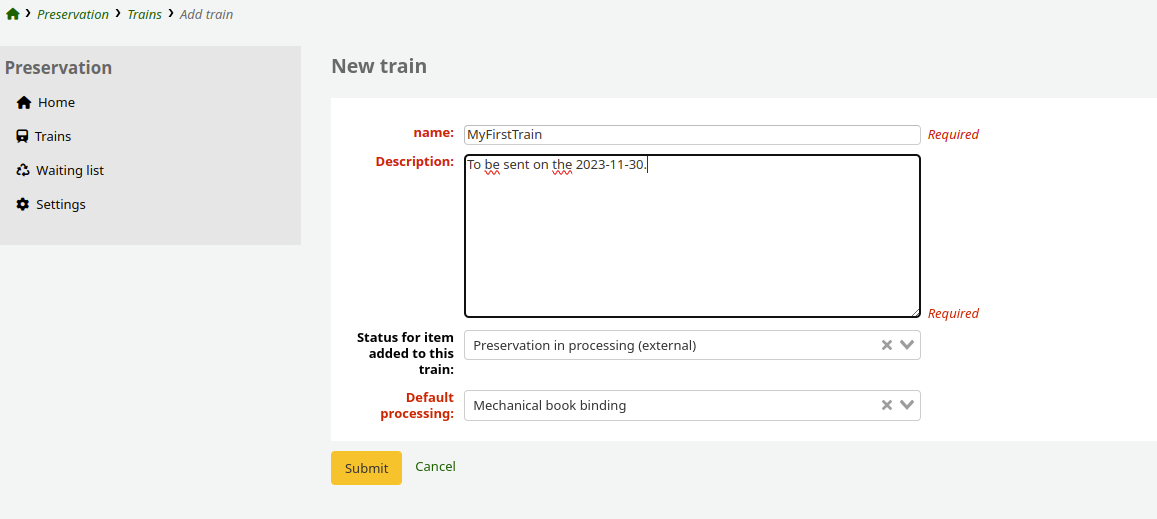

Page to create and add a new preservation train to the preservation module

Click on the ‘Submit’ button to create the new train and return to the trains page.

Add items

Once your train has been created, the next step is to add the items that will be sent away for this round of preservation.

You can add items to a train:

Adding items from the Trains page


You have to add your items to the waiting list before you can add them to a train.

From the Trains page, either:

  • Click the ‘Add items’ button in the Actions column.

    • Enter the item’s barcode.

  • Or, click on a train’s name.

    • Click the ‘Add items’ button at the top of the page.

    • Enter the item’s barcode.

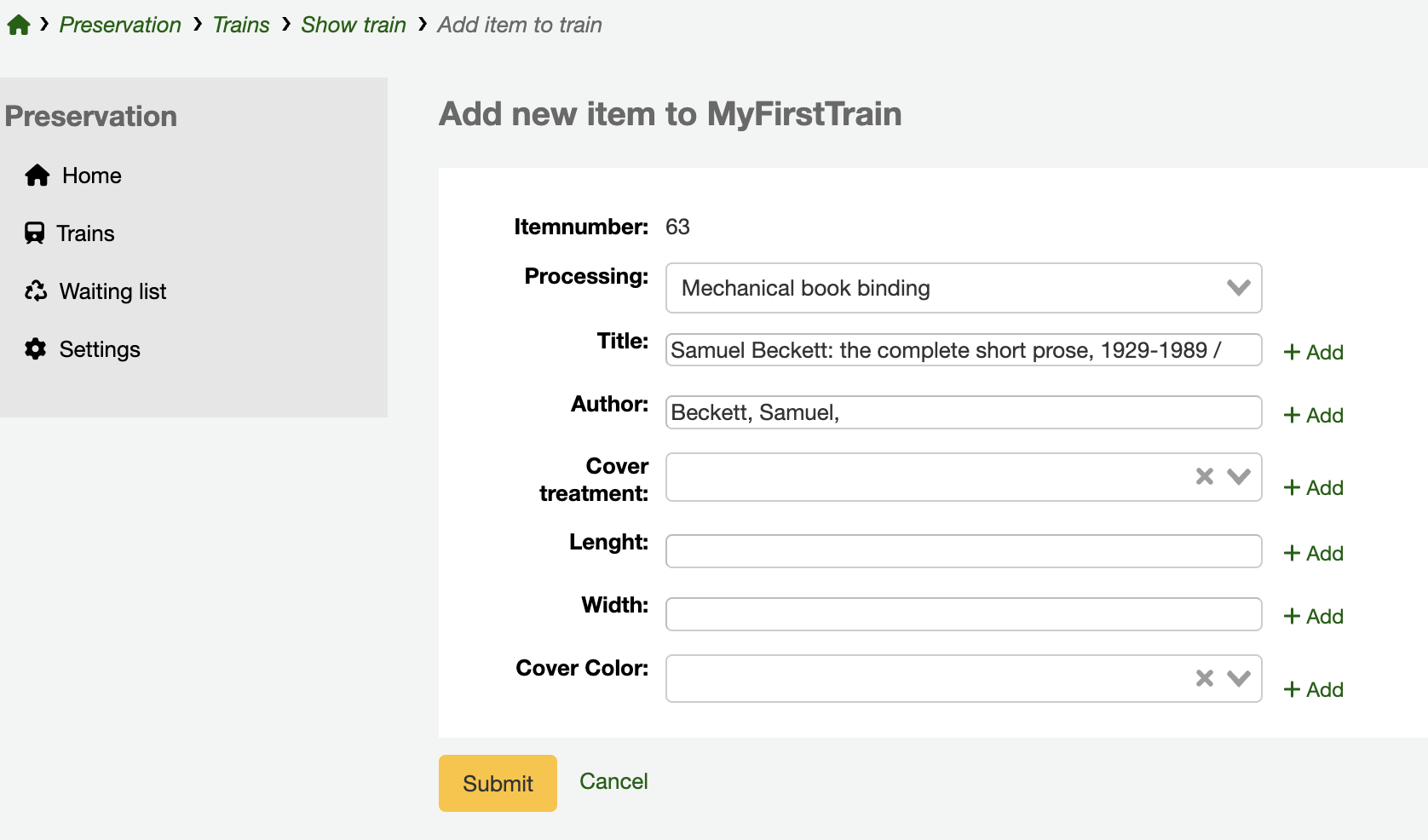

preservation item form where attributes can be attached

The form displayed shows the item number and the attributes for the default processing (chosen when creating the train).

  • All the processing attributes that are database columns are filled with data from the relevant fields.

  • All the attributes are editable, even when extracted from the Koha database or the authorized values.


    None of the modifications here will update the Marc data or the authorized values. The modified data is solely meant for use in the preservation module.

  • Each attribute can be duplicated.

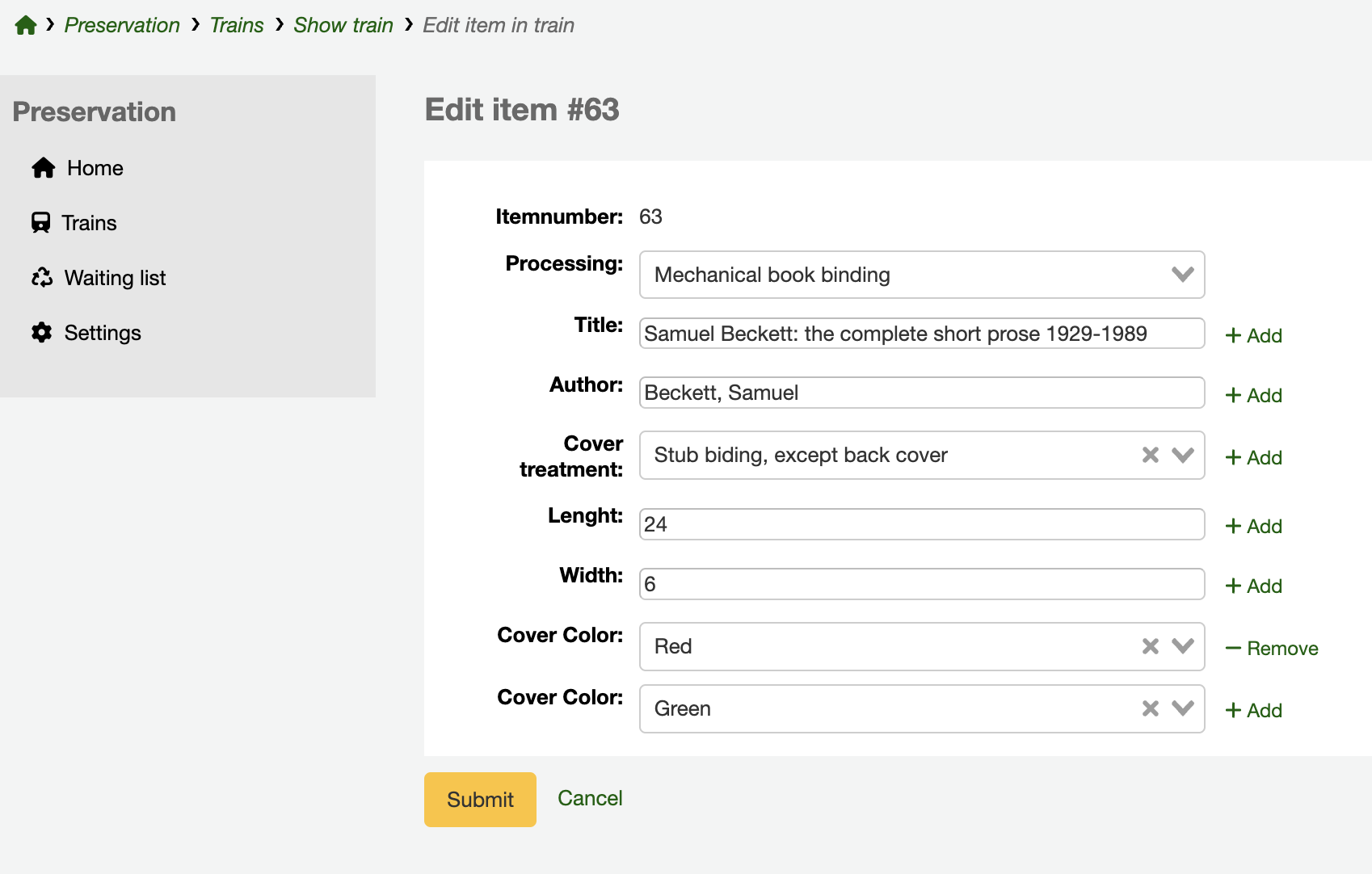

item form showing multivalued attributes

You can also change the fields you need for this specific item by switching to another processing.


If switching to another processing, the train’s page will be unable to display a table summary.

Adding items from the waiting list

To gain time, you can add items to a train immediately after adding them to the waiting list.

Click on the ‘Add last x items to a train’ button (where x refers to the number of items you just added).

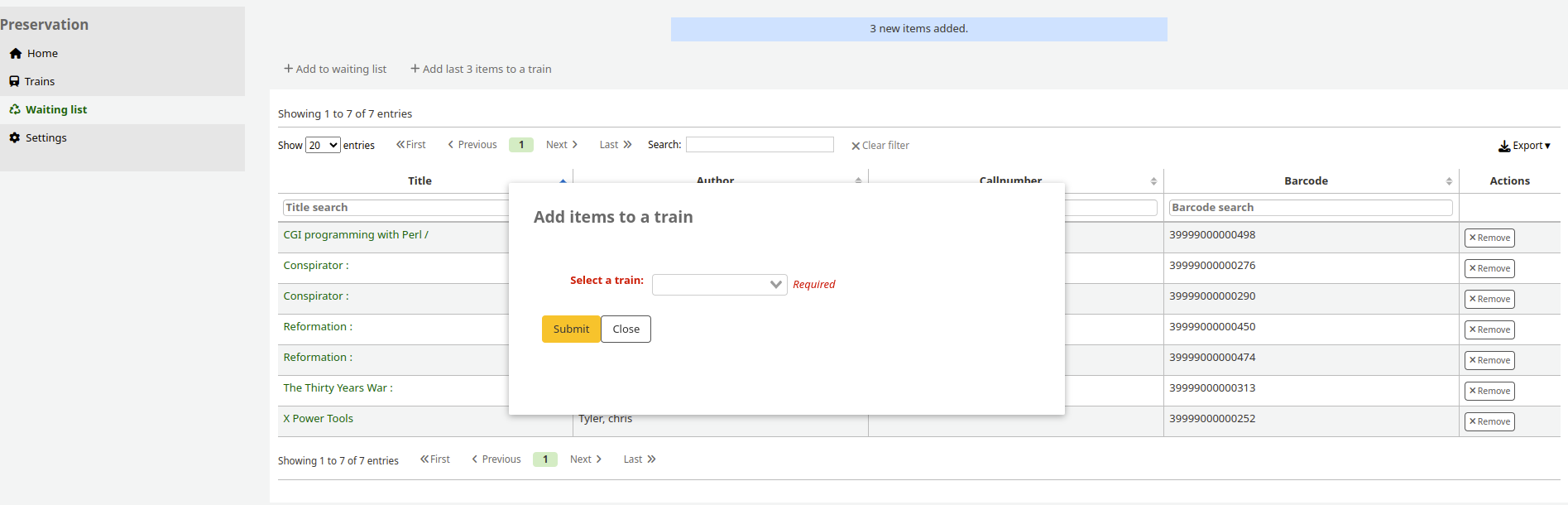

pop-up window to add the last added items to the waiting list into a train

In the pop-up window that appears, select the desired train from the list of currently available preservation trains; then click ‘Submit’.


This will add your items to the train as a batch. You will not get the option to edit the processing attributes for individual items.

If you need to edit the processing attributes afterwards, you can do so from the train: use the ‘Edit’ button in the Items table.

Train management

To view a preservation train, click on the train name on the Trains page table.

Show train

  • Get there: More > Preservation > Trains > Show train

The train allows you to perform four different actions:

  • Add item: click on the button and a pop-up to add an item will appear.

  • Edit: the edit button will send you back to the train settings you completed in order to create the train.

  • Delete: deletes the entire train. The list of items in this train will disappear.


    When deleting an entire train, the items’ Not for loan status does not automatically revert to the Available status.

  • Close / Sent / Received: a button to timestamp and monitor the workflow of your preservation train.

Under those four buttons you will see the displayed train’s settings and the table of items included in the train.


The column headers in the items table exactly match the attributes of the chosen processing.

If the default NOT_LOAN values for the waiting list and the train are different, the item disappears from the waiting list when added to the train. It appears in both otherwise.


It is recommended to keep the default processing the same throughout the whole workflow of the preservation train. Changing it while the train has items will disable the table view of items.

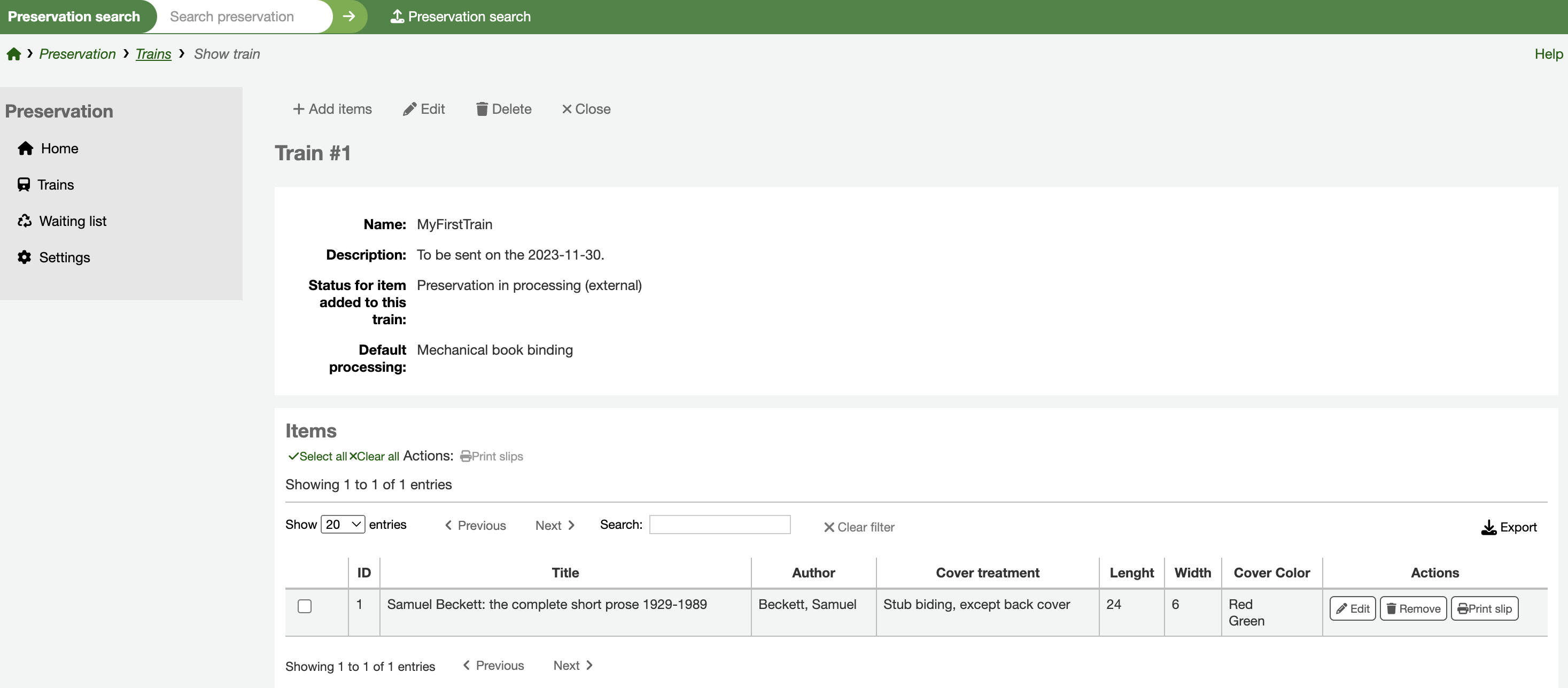

The inside of a preservation train

The preservation train’s items table contains the information selected when adding an item. On the right of the same table, you have three actions :

  • Edit: to change the values of its preservation processing attributes.

  • Remove: to remove the item from the train.


    When removing an item, the item’s Not for loan status does not automatically revert to the Available status.

  • Print slip: when enabled in the processing’s default settings, the ‘Print slip’ button appears in the actions.

    • Check the box on the left of the items, then click on ‘Print slips’ at the top of the items table.

    • If the default ‘Train item slip’ (notice code PRES_TRAIN_ITEM) is used, the generated slip will contain all of the items’ information displayed in the table.

Close and send

Once all the items have been added and edited, you will need to close the train. Click on the ‘Close’ button on the top of the page. This adds a ‘Closed on’ date to the train details.

When a train has been closed, no new items can be added to it.

The next step is to physically send the train to the bookbinder. To keep track of this information in Koha, click the ‘Send’ button where the ‘Close’ button used to be. It will update the status of the train to Sent and add a ‘Sent on’ date to the train details.

Receive train

Finally, when the train is physically returned to the library, click on the ‘Receive’ button. This adds a ‘Received on’ date to the train details.

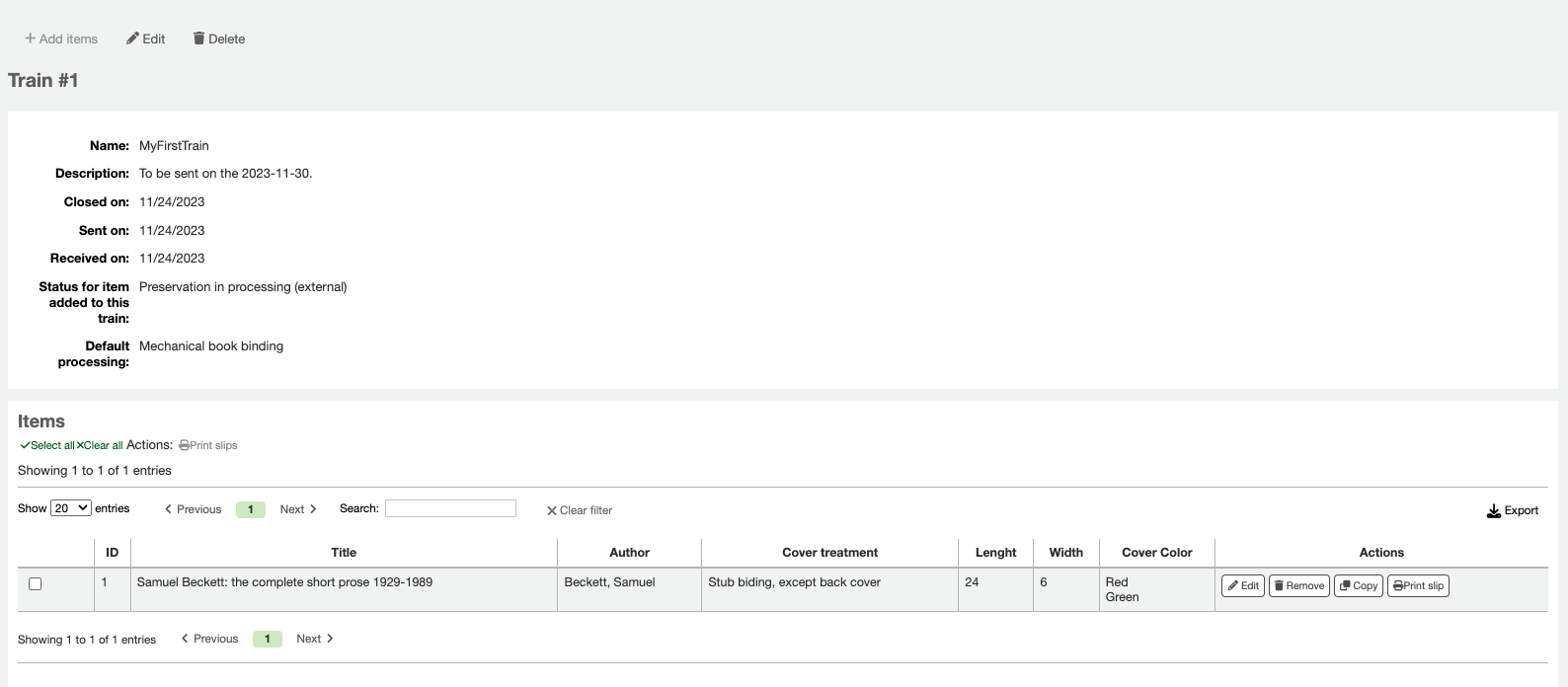

The inside of a train after it has been received from the bookbinding provider. Notice the actions on the right of the items

Occasionally, items arriving from the bookbinder have defects and need to be sent back.

You can move any items from your received train to another open train: use the ‘Copy’ button in the Actions column and select the next train for this item to be sent on. Doing this will keep the preservation data from the first train, though you can edit it.


If the preservation train contains items with different processings, the items table won’t display. This is because each item would require a different table with different columns; they cannot coexist together in a unique view.

In this case, the table will instead appear as a raw list of items with their processing data.

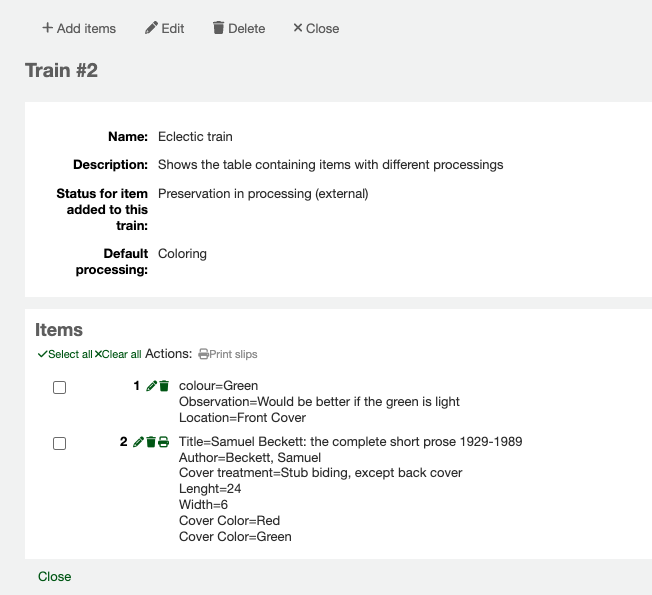

An exemple of a preservation train containing items with diverse processings
